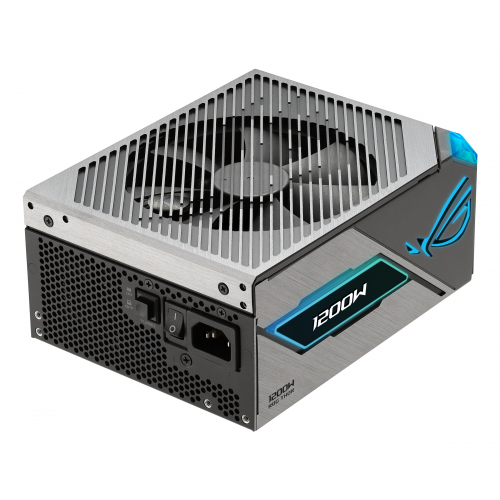

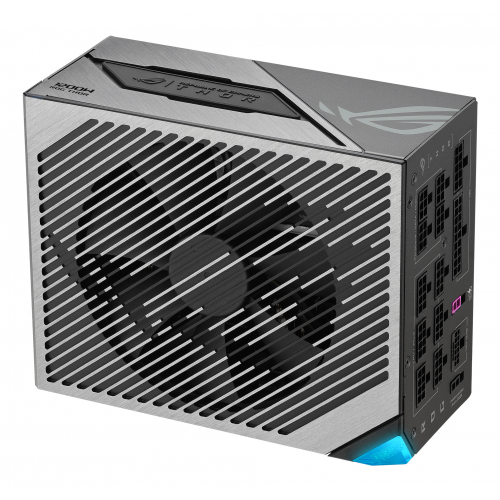

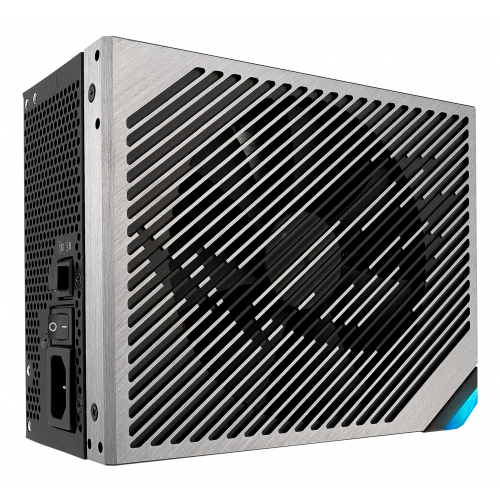

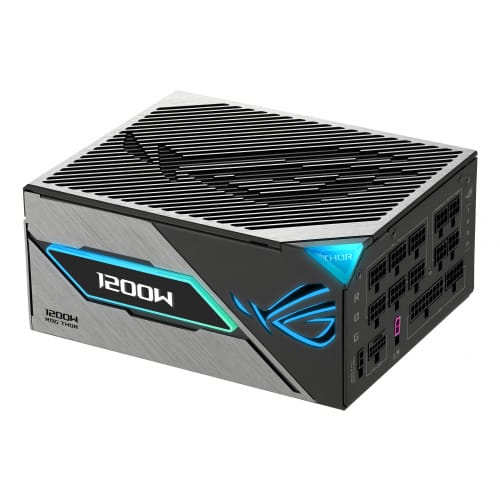

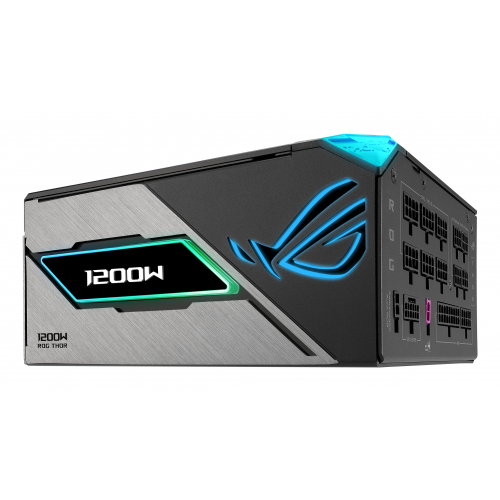

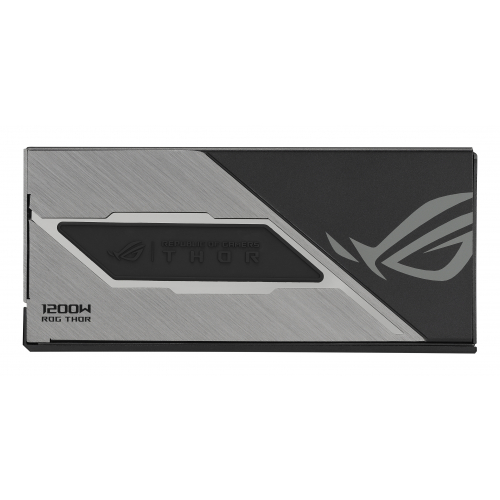

ASUS ROG -THOR-1200P3-GAMING-E power supply unit 1200 W 24-pin ATX ATX Black
1 of 12
- 1200 W 100 - 240 V
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Platinum
- Active
- Black
Frequently bought together
Product Specification
- Product Code
- H44689465
- Manufacturer Ref
- 90YE00V7-B0NA00
- Barcode
- 4711636457729
Product Details
- ASUS ROG -THOR-1200P3-GAMING-E power supply unit 1200 W 24-pin ATX ATX Black

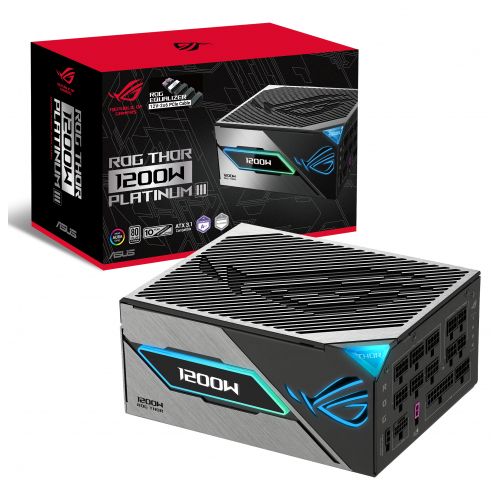

ROG Thor 1200W Platinum III
Ultimate Power. Unmatched Stability

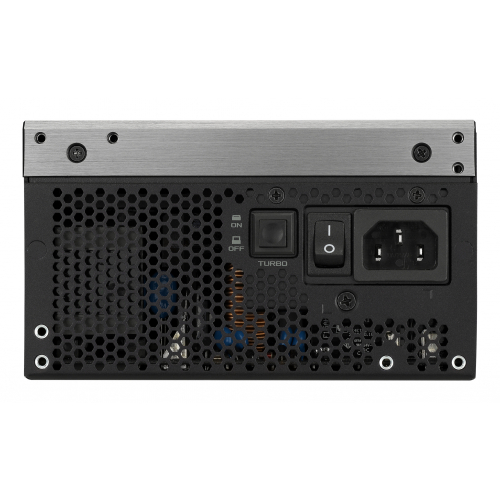

The ROG Thor 1200W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.
The ROG Thor 1200W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

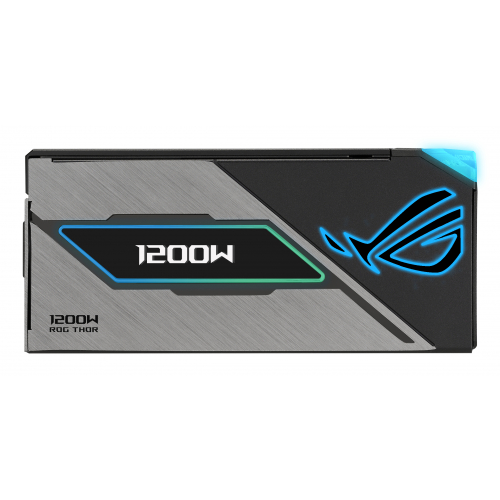

The ROG Thor 1200W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.
Ultimate Power. Unmatched Stability
The ROG Thor 1200W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.
The ROG Thor 1200W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.
The ROG Thor 1200W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.
Specifications
| Power | |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Under voltage, Short circuit, Over current |

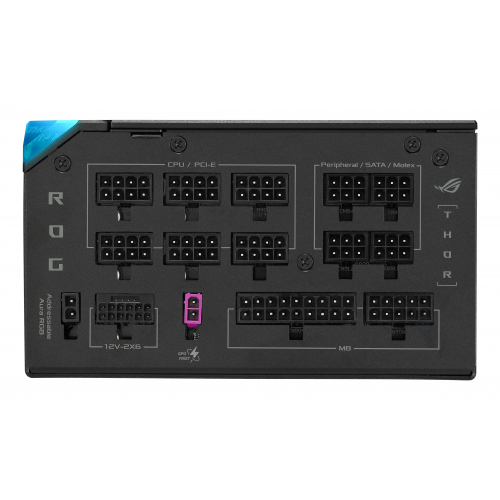

| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 7 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Cybenetics certification | Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 120000 h |
| Design | |
| Product colour | Black |

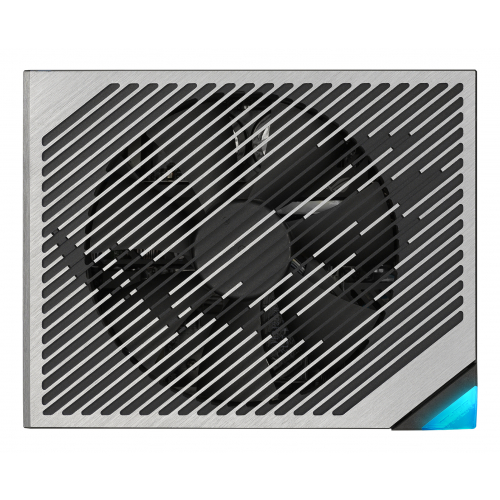

| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| On/off switch | Yes |
| Weight & dimensions | |
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.37 kg |
| Packaging data | |
| Package width | 379 mm |
| Package depth | 241 mm |
| Package height | 127 mm |
| Package weight | 5.22 kg |
| Package type | Box |
