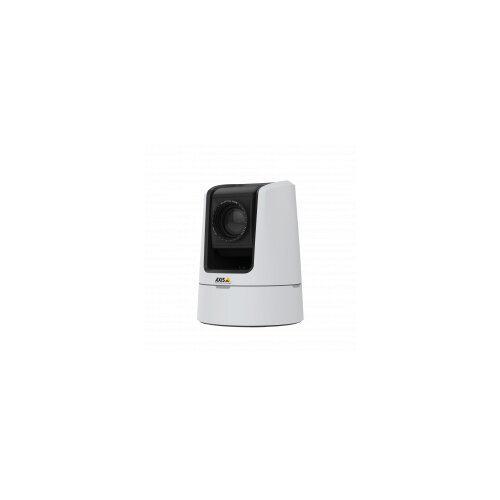

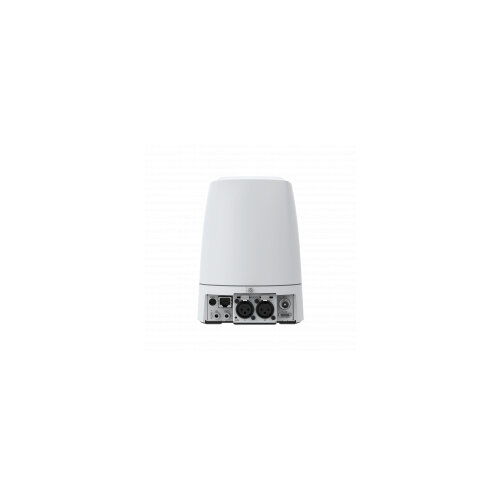

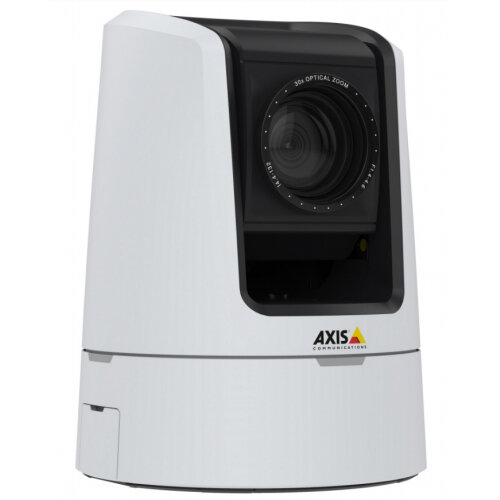

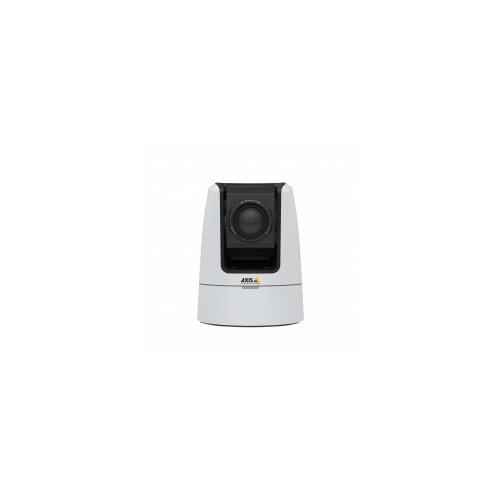

Axis 01965-002 security camera Dome IP security camera Indoor 1920 x 1080 pixels Ceiling/wall
- 3G-SDI and HDMI outputs; Camstreamer 3-month trial included; HDTV 1080p at 60 fps and 30x zoom; High-quality audio with XLR inputs; VISCA and VISCA over IP support
Product Specification
- Product Code
- H44611429
- Manufacturer Ref
- 01965-002
- Barcode
- 7331021070974
Product Details
- Axis 01965-002 security camera Dome IP security camera Indoor 1920 x 1080 pixels Ceiling/wall
AXIS V5925 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Preset points | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Certification | 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A , KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Plastic |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Lens viewing angle, horizontal | 62° |
| Lens viewing angle, vertical | 37° |
| Tilt angle range | -20 - 90° |
| Tilt speed | 90 °/sec |
| Pan range | -170 - 170° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/10000 - 1 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Number of lenses | 1 |
| Focal length range | 4.4 - 132 mm |
| Auto focus | Yes |
| Maximum aperture number | 4.6 |
| Minimum aperture number | 1.4 |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Saturation, Sharpness |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio formats supported | AAC-LC, ADPCM, LPCM |
| Sample rate | 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog, HDMI 1.4, 3G-SDI |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
| HTTPS encryption | Yes |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 14 W |
| Power consumption (max) | 25 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 136 mm |
| Height | 180 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
