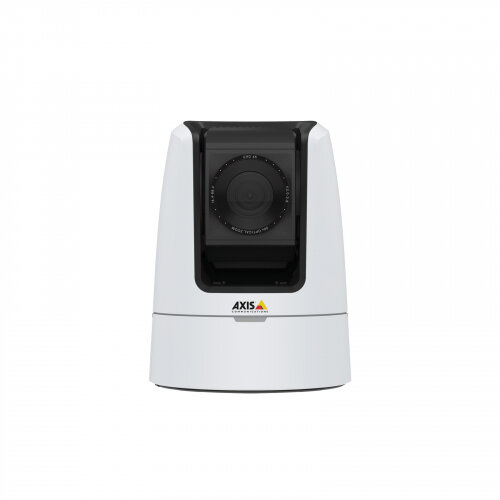

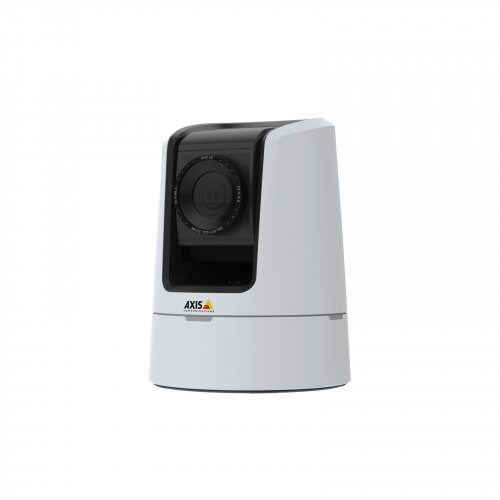

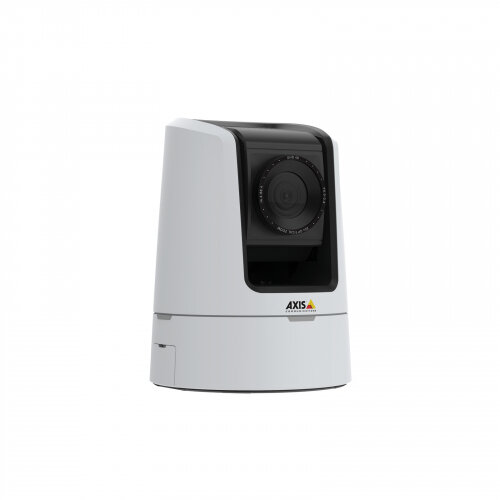

Axis 02022-003 security camera IP security camera Indoor 3840 x 2160 pixels Ceiling/wall
- 3G-SDI and HDMI outputs; Broadcast-quality audio with XLR inputs; Camstreamer 3-month trial included; UHD 4K at 30 fps and 20x zoom; VISCA and VISCA over IP support
Product Specification
- Product Code
- H44611508
- Manufacturer Ref
- 02022-003
- Barcode
- 7331021070875
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor
- Brand
- Axis
- Memory Type
- MicroSD MicroSDHC MicroSDXC
Product Details
- Axis 02022-003 security camera IP security camera Indoor 3840 x 2160 pixels Ceiling/wall
AXIS V5938 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Preset points | Yes |
| Day/night mode | Yes |
| Certification | EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Design | |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| Housing material | Plastic |
| Fog proof | Yes |
| Camera | |
| Minimum illumination | 0.1 lx |
| Lens viewing angle, horizontal | 70.2° |
| Lens viewing angle, vertical | 39.5° |
| Tilt angle range | -20 - 90° |
| Tilt speed | 90 °/sec |
| Pan range | -170 - 170° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/10000 - 1 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 12x |
| Number of lenses | 1 |
| Focal length range | 4.4 - 88 mm |
| Auto focus | Yes |
| Maximum aperture number | 3.8 |
| Minimum aperture number | 2 |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported video modes | 2160p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Sharpness |
| Image stabilizer | Yes |
| Back Light Compensation (BLC) | Yes |
| Audio | |
| Audio system | 2-way |
| Audio formats supported | ADPCM, G.711, G.726, LPCM, PCM |
| Sample rate | 48 kHz |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |

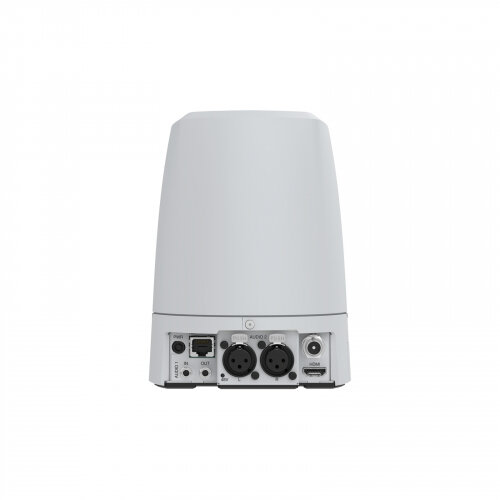

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Password protection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 17.5 W |
| Power consumption (max) | 20 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 136 mm |
| Height | 180 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
