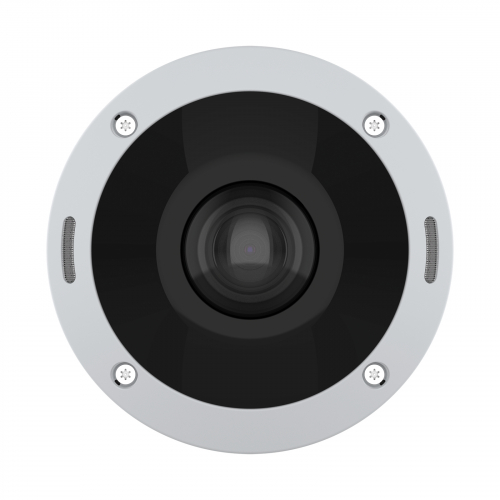

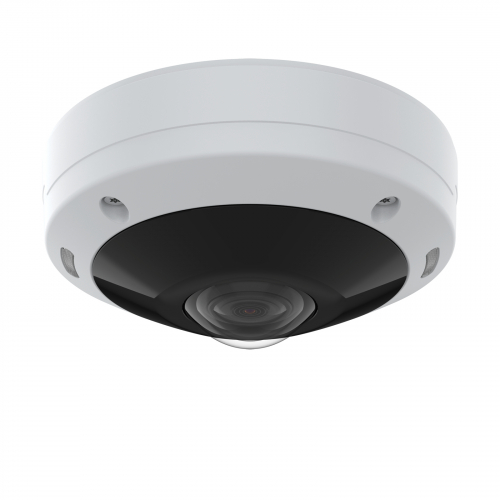

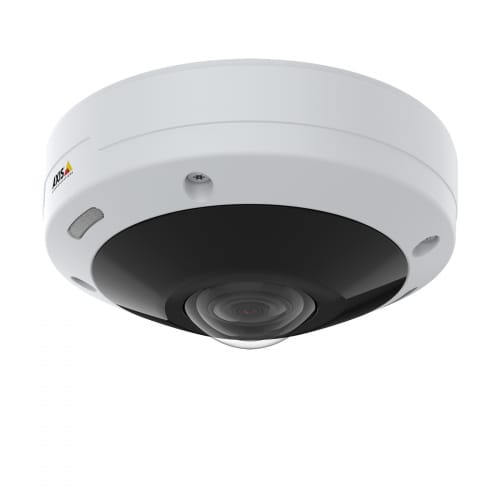

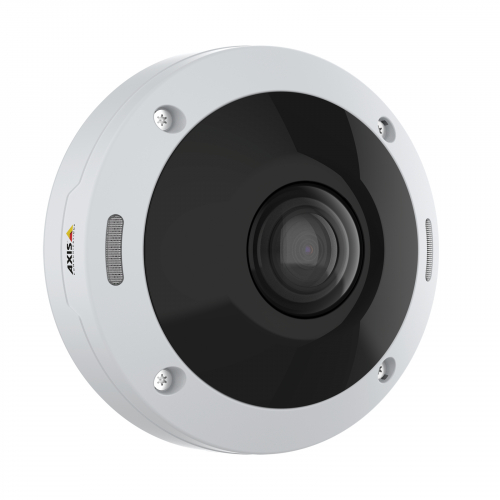

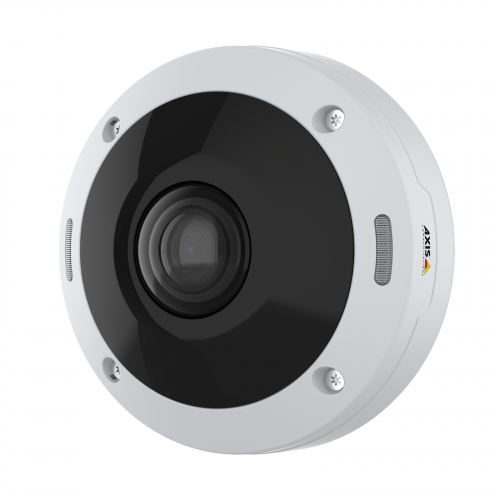

Axis 02100-001 security camera Dome IP security camera Indoor & outdoor 2880 x 2880 pixels Ceiling/wall
1 of 5
Axis 02100-001 security camera Dome IP security camera Indoor & outdoor 2880 x 2880 pixels Ceiling/wall
- 12 MP sensor with 360° overview; 4 microphones with voice enhancer; Lightfinder, Forensic WDR, OptimizedIR; Stereographic lens and Sharpdome 360; Support for analytics with deep learning
Frequently bought together
Product Specification
- Product Code
- H44611718
- Manufacturer Ref
- 02100-001
- Barcode
- 7331021072534
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor & Outdoor
- Brand
- Axis
- Memory Type
- MicroSD MicroSDHC MicroSDXCa
Product Details
- Axis 02100-001 security camera Dome IP security camera Indoor & outdoor 2880 x 2880 pixels Ceiling/wall
AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A,RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835 |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| LED indicators | Yes |
| Housing material | Aluminium |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.04 lx |
| Field of view (FOV) angle | 183° |
| Lens viewing angle, horizontal | 183° |
| Camera shutter speed | 1/22000 - 1 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.7 mm (1 / 1.7") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Focal length range | 1.3 mm |
| Auto focus | No |
| Fixed focus | Yes |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Maximum resolution | 2880 x 2880 pixels |
| Total megapixels | 12 MP |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast |
| Privacy masking | Yes |
| Audio | |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS |
| Built-in microphone | Yes |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 1000 MB |
| Internal memory | 2000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS |
| HTTPS encryption | Yes |
| Alert notification type | E-mail, Text alert message |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 7.9 W |
| Power consumption (max) | 15.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 69 mm |
| Diameter | 14.9 cm |
| Weight | 850 g |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Drilling template included | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
