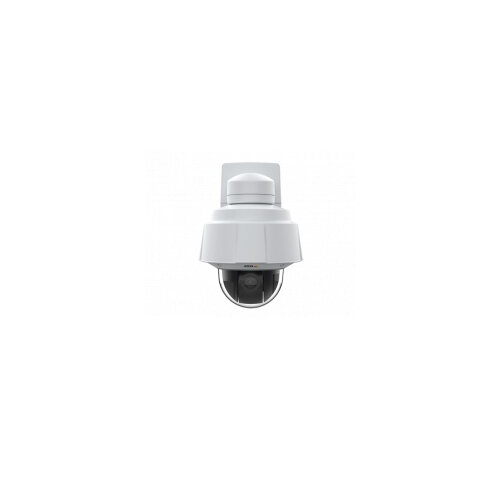

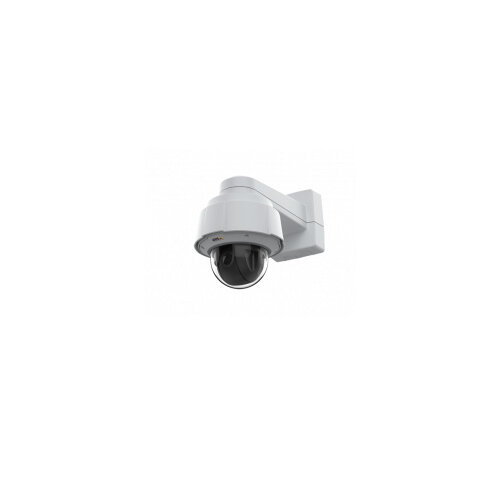

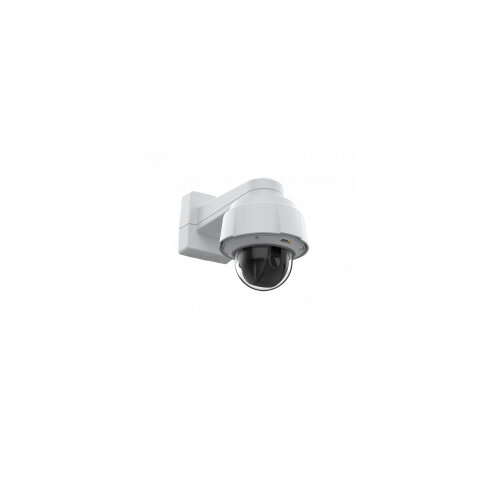

Axis 02147-002 security camera Dome IP security camera Outdoor 3840 x 2160 pixels Wall
- AXIS Object Analytics; Built-in cybersecurity features; Outstanding images with great details; UHD 4K with 20x optical zoom; Zipstream with support for H.264/H.265
Product Specification
- Product Code
- H44611572
- Manufacturer Ref
- 02147-002
- Barcode
- 7331021073678
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Outdoor
- Brand
- Axis
- Memory Type
- SD & SDHC & SDXC
Product Details
- Axis 02147-002 security camera Dome IP security camera Outdoor 3840 x 2160 pixels Wall
AXIS Q6078-E PTZ Camera offers UHD 4K with 20x optical zoom for outstanding video quality. It offers great overviews and detail with the clearest, sharpest colors. This high-performance outdoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. Featuring built-in cybersecurity such as signed firmware and secure boot it ensures the integrity and authenticity of the firmware. Axis Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. Furthermore, AXIS Object Analytics offers highly granular and nuanced object classification.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Preset point |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Design | |
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Acrylonitrile styrene acrylate (ASA), Metal, Polycarbonate (PC) |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Lens viewing angle, horizontal | 68.3° |
| Lens viewing angle, vertical | 42.1° |
| Tilt angle range | 0 - 220° |
| Tilt speed | 450 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 450 °/sec |
| Camera shutter speed | 1/10000 - 1 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 12x |
| Number of lenses | 1 |
| Lens diameter | 8.84 cm |
| Focal length range | 2.0 - 3.8 mm |
| Auto focus | Yes |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 180 |
| Supported video modes | 2160p |
| Video recording | Yes |
| Frame rate | 60 fps |
| Video intelligence analytic | Yes |
| Video streaming | Yes |
| Time stamp overlay | Yes |
| Text caption overlay | Yes |
| Network | |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1, Syslog |
| Storage | |
| Built-in HDD | Yes |
| HDD capacity | 2 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Security | |
| IP address filtering | Yes |
| Security algorithms | EAP-TLS, HTTPS |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| Power consumption (max) | 66.1 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Height | 271 mm |
| Diameter | 23.2 cm |
| Weight | 3.75 kg |
| Packaging content | |
| Number of cameras | 2 |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
