Axis 02316-003 security camera Box IP security camera Outdoor 1920 x 1080 pixels Wall
- 1/2" sensor and long-range OptimizedIR; AXIS Object Analytics preinstalled; Electronic image stabilization; HDTV 1080p and 31x optical zoom; MIL-STD-810G and NEMA TS 2 compliant
Frequently bought together
Product Specification
- Product Code
- H44611966
- Manufacturer Ref
- 02316-003
- Barcode
- 7331021078840
Product Details
- Axis 02316-003 security camera Box IP security camera Outdoor 1920 x 1080 pixels Wall

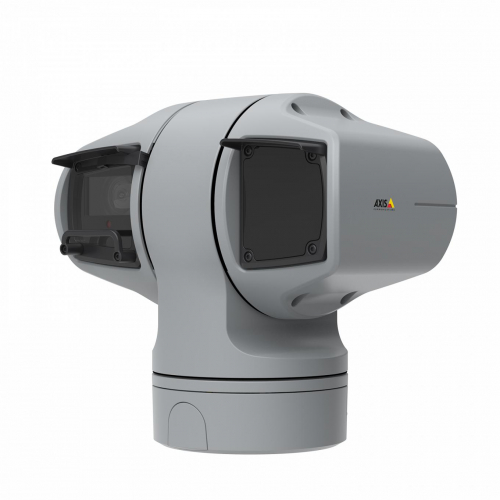

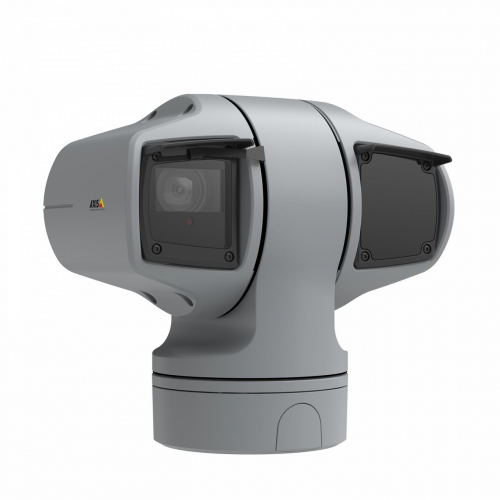

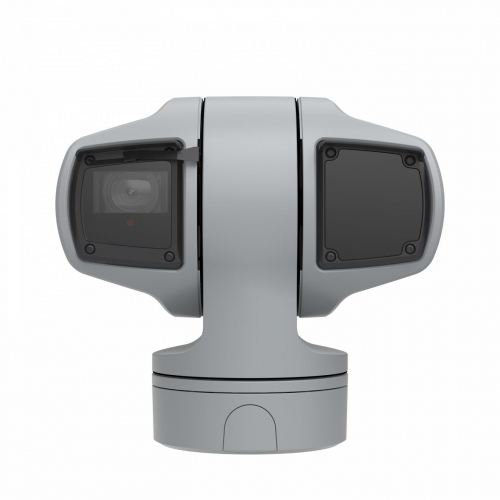

This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Processor model | ARTPEC-7 |
| Built-in processor | Yes |
| Number of languages | 18 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Certification | EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Design | |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Grey |
| Housing material | Aluminium |
| International Protection (IP) code | IP66, IP68 |
| IK code | IK10 |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.05 lx |
| Lens viewing angle, horizontal | 63.8° |
| Lens viewing angle, vertical | 37° |
| Tilt angle range | -90 - 90° |
| Tilt speed | 150 °/sec |
| Pan speed | 150 °/sec |
| Camera shutter speed | 1/111000 - 1/2 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 31x |
| Digital zoom | 12x |
| Focal length range | 6.91 - 214.64 mm |
| Auto focus | Yes |
| Maximum aperture number | 4.6 |
| Minimum aperture number | 1.36 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 400 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | H.264, H.265, M-JPEG |
| Video recording | Yes |
| Frame rate | 50 fps |
| Video streaming | Yes |
| Privacy masking | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3bt |
| Supported network protocols | IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, NTCIP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Power | |
| Power source type | PoE |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 25 W |
| Power consumption (max) | 71 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 313 mm |
| Depth | 210 mm |
| Height | 330 mm |
| Weight | 8.7 kg |
| Packaging content | |
| Number of cameras | 1 |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Packaging content | Windows decoder 1-user license, IK10 bumper, High PoE Midspan 1-port |
