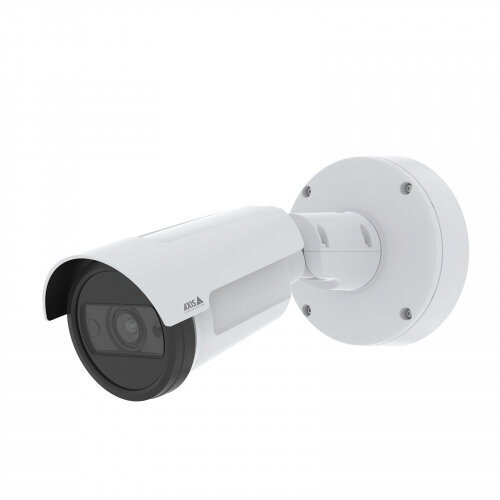

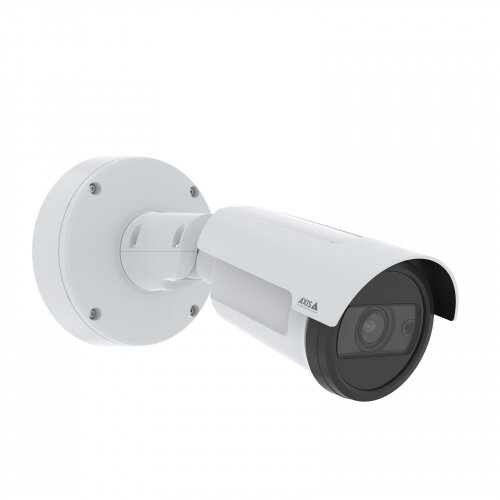

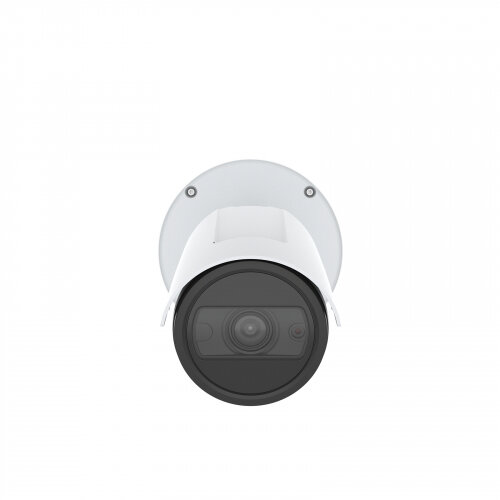

Axis 02341-001 security camera Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
- Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Impact and weather resistant; Lightfinder 2.0, Forensic WDR, OptimizedIR
Product Specification
- Product Code
- H44611964
- Manufacturer Ref
- 02341-001
- Barcode
- 7331021076112
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor & Outdoor
- Brand
- Axis
- Memory Type
- MicroSDHC MicroSDXC & SD Card
Product Details
- Axis 02341-001 security camera Bullet IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
Based on ARTPEC-8, AXIS P1467-LE delivers excellent image quality in 5 MP. It includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics preinstalled, it offers detection and classification of humans, vehicles, and types of vehicles. This IP66/IP67, NEMA 4X, and IK10-rated camera can withstand winds up to 50 m/s. Lightfinder 2.0, Forensic WDR, and OptimizedIR, ensure sharp, detailed images under any light conditions. Furthermore, it includes Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis products on your network.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035,EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),VCCI Class A, RCM AS/NZS CISPR 32 Class A |
| Design | |
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
| Minimum illumination | 0.13 lx |
| Camera shutter speed | 1/50000 - 1/5 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Focal length range | 2.8 - 8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Bit rate | Configurable bit rate |
| Audio | |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Wi-Fi | No |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Built-in SSD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 8000 MB |
| Internal memory | 2000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS |
| HTTPS encryption | Yes |
| Alert notification type | E-mail, Text alert message |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 5.8 W |
| Power consumption (max) | 12.9 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 280 mm |
| Depth | 280 mm |
| Diameter | 13.2 cm |
| Weight | 1.2 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting brackets included | Yes |
| Drilling template included | Yes |
| Manual | Yes |
| Other features | |
| Doesn't contain | BFR, PVC |
