Axis 02364-001 security camera accessory Sensor unit
- 111º field of view; Exchangeable M12 lenses; For sterile environments; IR illumination; Up to 60 fps at 1080p and 180 fps at 720p
Product Specification
- Product Code
- H44623338
- Manufacturer Ref
- 02364-001
- Barcode
- 7331021076426
Product Details

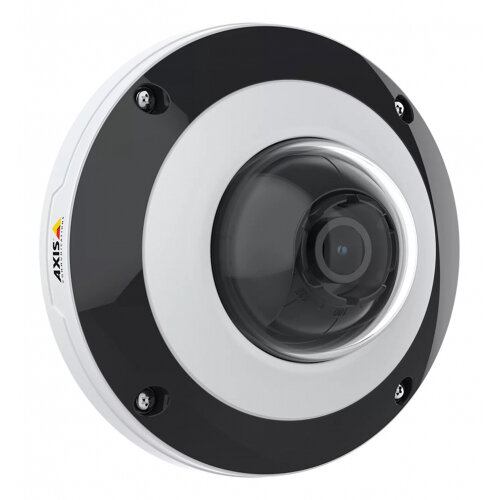

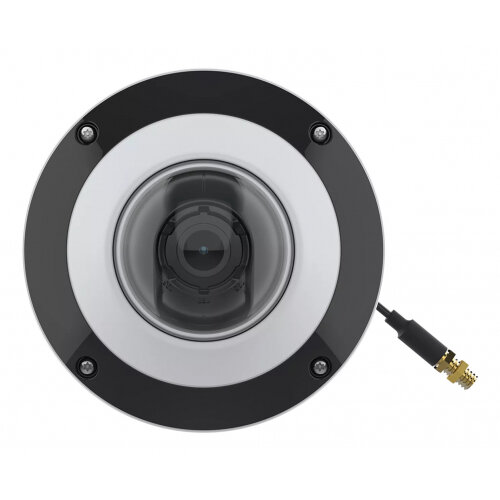

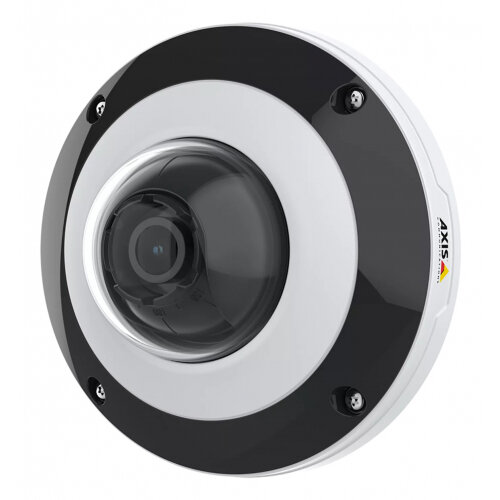

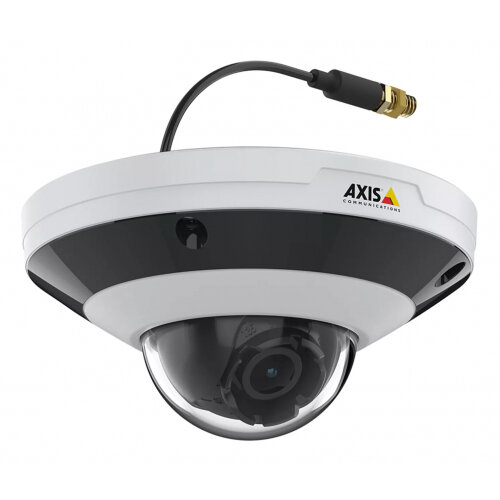

- Axis 02364-001 security camera accessory Sensor unit

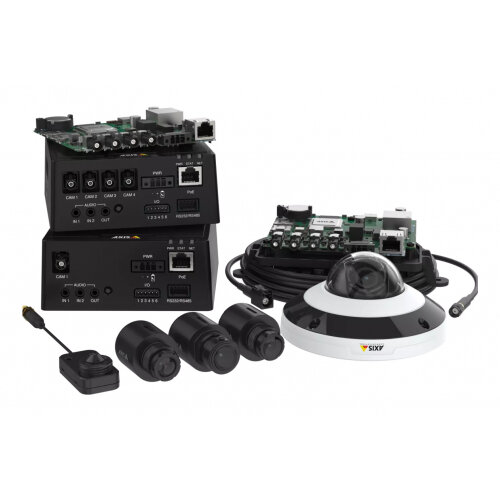

Ideal for various indoor and outdoor surveillance scenarios, this discreet dome sensor unit is designed for use with AXIS F91 main units to ensure lower installation and configuration costs. It connects to the main unit using cables up to 30 m (98 ft). It offers an 111º field of view for wide area coverage. Plus, it supports a wide range of exchangeable M12 lens options with different field of view. This robust sensor can withstand shock and vibrations and includes SMA connectors to ensure ruggedized installations. Additionally, with IR illumination, it delivers great image usability even in complete darkness.
Specifications
| Features | |
|---|---|
| Type | Sensor unit |
| Placement supported | Universal |
| Brand compatibility | Axis |
| Product colour | Black |
| International Protection (IP) code | IP66, IP67, IP6K9K |
| IK code | IK10 |
| Protection features | Dust resistant, Water resistant |
| Wide Dynamic Range (WDR) | Yes |
| Image sensor | |
| Lens mount interface | M12 |
| Sensor type | CMOS |
| Focal length range | 2.8 mm |
| F-number (relative aperture) | 2 |
| Resolution | 1920 x 1200 pixels |
| Viewing angle, horizontal | 110° |
| Viewing angle, vertical | 61° |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 55 °C |
