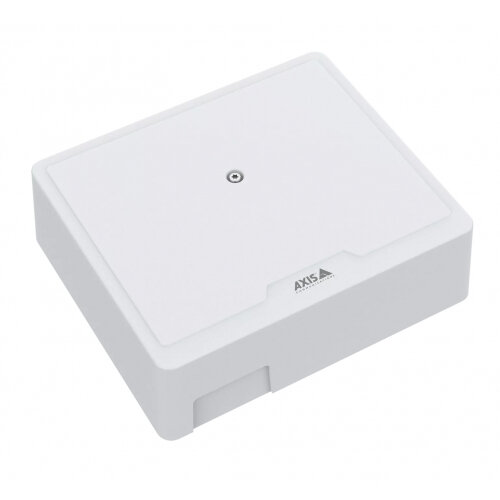

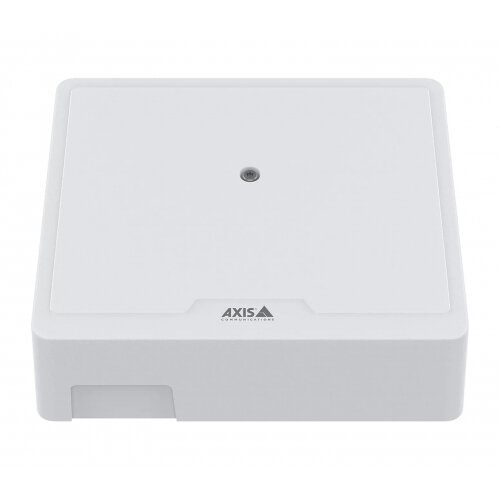

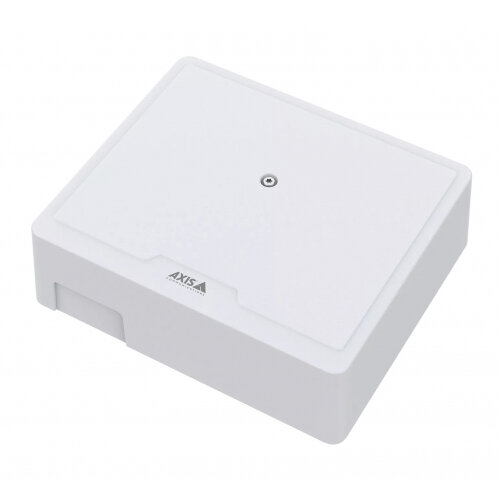

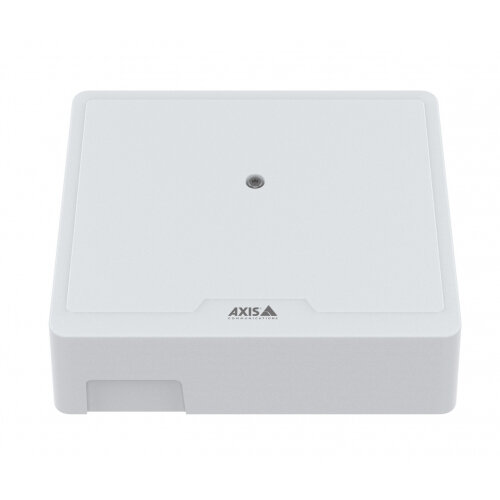

Axis 02368-001 security door controller Housing 1 door(s)
- Built-in cybersecurity features; Compact form factor; Complete control for one door; Fully integrated within Axis end-to-end solutions; Intelligence on the edge
Product Specification
- Product Code
- H44612614
- Manufacturer Ref
- 02368-001
- Barcode
- 7331021076488
Product Details
- Axis 02368-001 security door controller Housing 1 door(s)
Suitable for installation anywhere, this compact, competitively priced product offers fast and easy installation on walls. Plus, it’s suitable for plenum spaces. It includes everything needed to control one door all powered by one PoE cable. With intelligence on the edge, it can internally handle all tasks related to door access—even if the network is down. Fully integrated within Axis end-to-end solutions, this scalable product is optimized for both small and large installations and supports flexible authentication using different types of credentials. Furthermore, with built-in cybersecurity features, it prevents unauthorized access and safeguards your system.
Specifications
| Technical details | |
|---|---|
| Case design | Housing |
| Maximum number of doors | 1 door(s) |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPSc, TLSc, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog |
| Performance | |
| Internal memory | 0.512 GB |
| Internal storage capacity | 2 GB |
| Storage media | Flash |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of built-in relays | 1 |
| Wiegand interface | Yes |
| Alarm input channels | 7 |
| Certification | UL 2043 UL294EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2,EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A,VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B,KC KN35IEC/EN/UL 62368-1, UL 294, UL 2043EnvironmentNEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78CSA C22.2 No. 205-1983 |
| Power | |
| Operating voltage | 12 V |
| DC voltage range | 11.5 - 12.5 V |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 144 mm |
| Depth | 122 mm |
| Height | 50 mm |
| Weight | 645 g |
