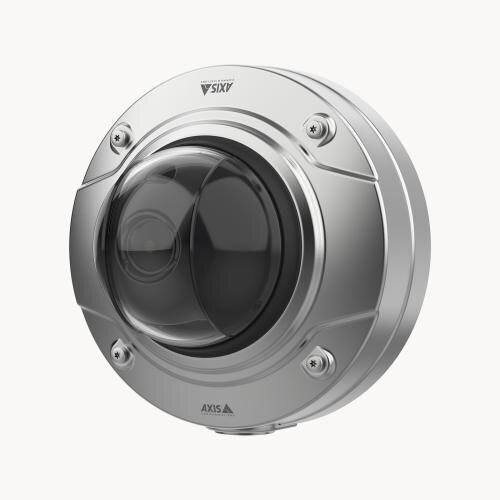

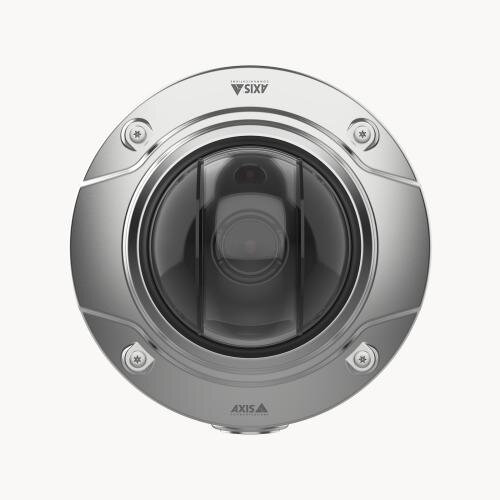

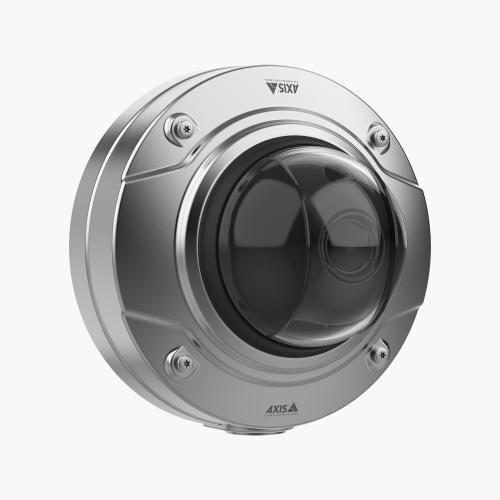

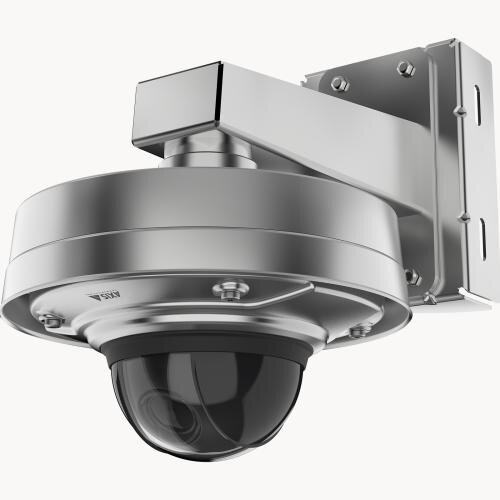

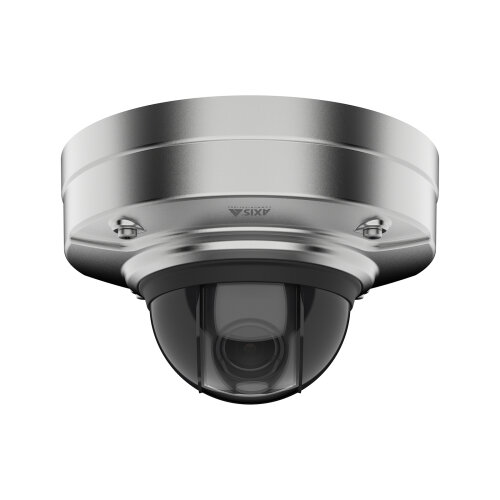

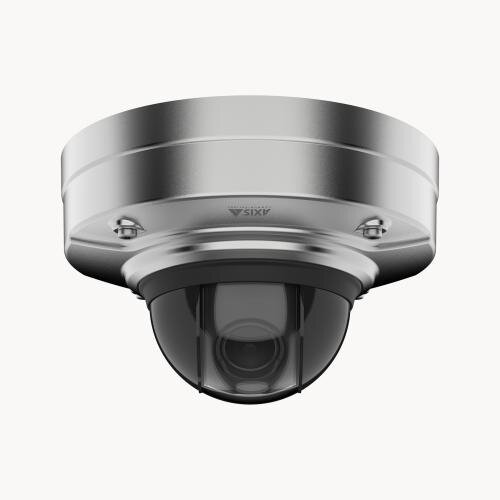

Axis 02463-001 security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
- Built-in cybersecurity features; Ideal for corrosive and harsh conditions; Marine-grade stainless steel casing; Outstanding image quality in 4K; Support for analytics with deep learning
Product Specification
- Product Code
- H44612601
- Manufacturer Ref
- 02463-001
- Barcode
- 7331021077812
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor & Outdoor
- Brand
- Axis
- Memory Type
- MicroSD MicroSDHC MicroSDXC
Product Details
- Axis 02463-001 security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
Enclosed in marine-grade stainless steel (SS 316L), DNV-certified casing, this robust camera is resistant to the corrosive effects of sea water and cleaning chemicals. Plus, it’s protected against redirection, defocusing, and impacts and can withstand wide temperatures ranges. It offers outstanding image quality in superior 4K resolution under any light conditions. Featuring a deep learning processing unit (DLPU), it supports advanced analytics based on deep learning on the edge. And, thanks to AXIS Object Analytics, it can detect and classify people, and different types of vehicles—all tailored to specific needs. Furthermore, built-in cybersecurity features help safeguard your system.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Silver |
| International Protection (IP) code | IP66, IP69K |
| IK code | IK10+ |
| Weatherproof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.07 lx |
| Tilt angle range | -43 - 80° |
| Camera shutter speed | 1/66500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Focal length range | 6.2 - 12.9 mm |
| Night vision | |
| Night vision | Yes |
| LED type | IR |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video formats supported | H.264, H.265 |
| Video recording | Yes |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Audio | |
| Audio formats supported | AAC-LC, G.711, G.726, OPUS |
| Built-in microphone | Yes |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Storage | |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8194 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Alert notification type | |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 9 W |
| Power consumption (max) | 23 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Drilling template included | Yes |
| Manual | Yes |
