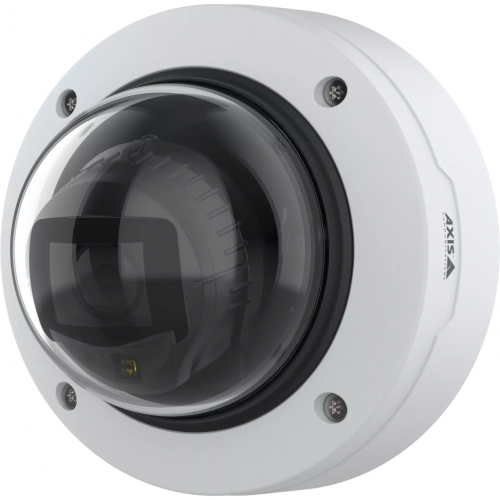

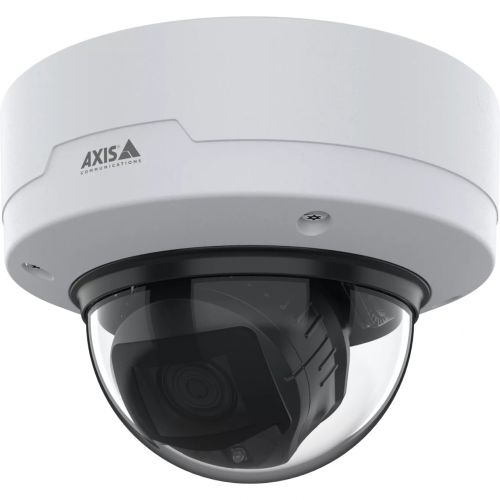

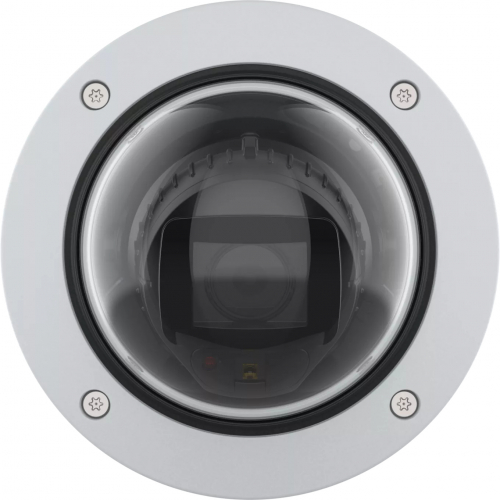

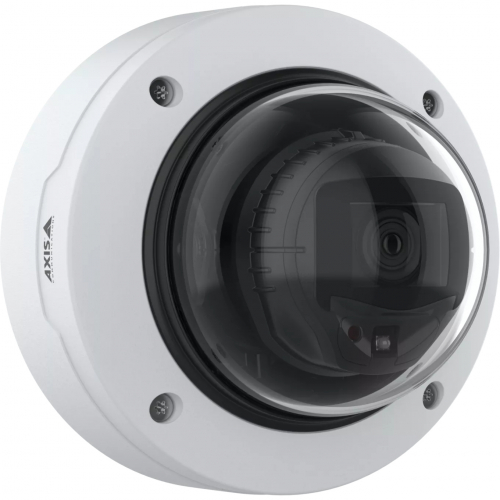

Axis P3277-LV Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
1 of 4
Axis P3277-LV Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
- Excellent image quality in 5 MP
- Next-generation AI-powered analytics
- Lightfinder 2.0 and Forensic WDR
- Audio and I/O connectivity
- Built-in cybersecurity with Axis Edge Vault
Frequently bought together
Product Specification
- Product Code
- H44634084
- Manufacturer Ref
- 03152-001
- Barcode
- 7331021089914
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor & Outdoor
- Brand
- Axis
- Memory Type
- MicroSD MicroSDHC MicroSDXCa
Product Details
- Axis P3277-LV Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/wall
AXIS P3277-LV Dome Camera
Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3277-LV offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
Built on ARTPEC-9, this indoor AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge.
Excellent image quality
AXIS P3277-LV offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera features a built-in audio jack, so it’s possible to connect a microphone for audio support.
Powerful analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy.
Robust with strong security
This robust, IK10- and NEMA 4X-rated camera is both vandal- and impact-resistant. And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Tour recording | Yes |
| People counting function | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Plastic, Polycarbonate (PC) |
| Protection features | Impact resistant, Vandal proof |
| International Protection (IP) code | IP54 |
| IK code | IK10 |
| Weatherproof | Yes |
| Fog proof | Yes |
| Camera | |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 190° |
| Lens viewing angle, horizontal | 104° |
| Lens viewing angle, vertical | 76° |
| Tilt angle range | -50 - 80° |
| Pan range | -190 - 190° |
| Camera shutter speed | 1/30500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Number of lenses | 1 |
| Lens diameter | 1 cm |
| Focal length range | 3 - 8.5 mm |
| Auto focus | Yes |
| Maximum aperture number | 2.58 |
| Minimum aperture number | 1.38 |
| Detect distance (wide) | 60 m |
| Detect distance (tele) | 170 m |
| Observe distance (wide) | 24 m |
| Observe distance (tele) | 67 m |
| Recognize distance (wide) | 12 m |
| Recognize distance (tele) | 34 m |
| Identify distance (wide) | 6 m |
| Identify distance (tele) | 17 m |
| Closest focusing distance | 1 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2560 x 1440, 2592 x 1944 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8 MB |
| Internal memory | 2000 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Terminal block port | Yes |
| Security | |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection, Moving object |
| Human and vehicle targets classification | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 4.7 W |
| Power consumption (max) | 12.6 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 149 mm |
| Depth | 149 mm |
| Height | 107 mm |
| Weight | 810 g |
| Sustainability | |
| Compliance certificates | CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Doesn't contain | BFR, PVC |
