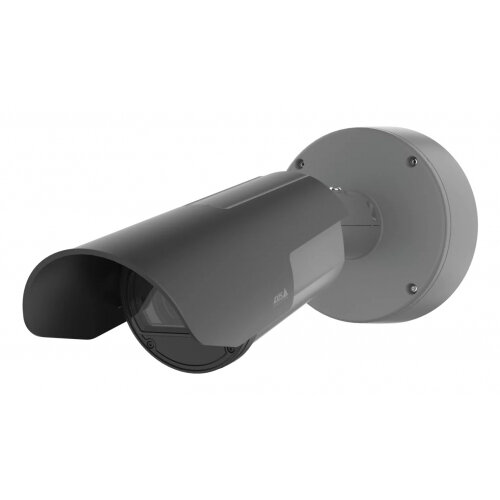

Axis Q1800-LE Bullet IP security camera Outdoor 1920 x 1080 pixels Wall
- LPR camera for 3rd party software
- Purpose-tuned for license plate recognition
- Capture license plates up to 250 km/h (155 mph)
- Capture range of up to 100 m (328 ft)
- Robust design withstands tough weather
Product Specification
- Product Code
- H44623652
- Manufacturer Ref
- 03107-001
- Barcode
- 7331021089334
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Outdoor
- Brand
- Axis
- Memory Type
- MicroSD MicroSDHC MicroSDXC
Product Details
- Axis Q1800-LE Bullet IP security camera Outdoor 1920 x 1080 pixels Wall
This purpose-tuned camera is ideal for traffic surveillance and smart city initiatives - enabling you to capture sharp license plate images 24/7. Made for 3rd party LPR software, it can help law enforcement agencies improve road safety and gather valuable intelligence.
Extraordinary accuracy 24/7
Designed to capture license plates with exceptional clarity and sharpness, this purpose-tuned camera comes preconfigured with advanced algorithms focusing solely on license plates. This ensures the required pixel density for accurate identification - with practically no setup required! It can capture plates at speeds up to 250 km/h (155 mph) in single lanes and from distances of up to 100 m (328 ft) during daylight. In pitch darkness, the camera captures license plate images at up to 50 m (164 ft), and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator delivering unmatched, reliable performance day and night.
Do it your way
AXIS Q1800-LE is fully compatible with edge- or server-based LPR software from any leading third-party vendor, giving you the freedom to choose the license plate recognition analytics that best suit your needs. Built on the Axis open platform, it integrates seamlessly with most third-party video management software (VMS) and supports a wide range of third-party applications and analytics. Plus, with various installation accessories available, this camera offers flexible mounting options, making it an ideal solution for any deployment.
Ready for anything
This purpose-tuned camera ensures accurate license plate capture 24/7 with minimal setup. Robust and weatherproof, it ensures durability in the toughest conditions. It includes an extra-long weathershield that can withstand hurricane-force winds of up to 60 m/s (134 mph) and resist harsh weather impacts (IK10-rated casing, IK08-rated front glass, and IP66- and NEMA 4X-rated). Plus, electronic image stabilization ensures stable images in situations where the camera is subject to vibrations. What’s more, the discreet gray color housing and black weathershield blend right into any traffic environment.
Extraordinary accuracy 24/7
Designed to capture license plates with exceptional clarity and sharpness, this purpose-tuned camera comes preconfigured with advanced algorithms focusing solely on license plates. This ensures the required pixel density for accurate identification - with practically no setup required! It can capture plates at speeds up to 250 km/h (155 mph) in single lanes and from distances of up to 100 m (328 ft) during daylight. In pitch darkness, the camera captures license plate images at up to 50 m (164 ft), and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator delivering unmatched, reliable performance day and night.
Do it your way
AXIS Q1800-LE is fully compatible with edge- or server-based LPR software from any leading third-party vendor, giving you the freedom to choose the license plate recognition analytics that best suit your needs. Built on the Axis open platform, it integrates seamlessly with most third-party video management software (VMS) and supports a wide range of third-party applications and analytics. Plus, with various installation accessories available, this camera offers flexible mounting options, making it an ideal solution for any deployment.
Ready for anything
This purpose-tuned camera ensures accurate license plate capture 24/7 with minimal setup. Robust and weatherproof, it ensures durability in the toughest conditions. It includes an extra-long weathershield that can withstand hurricane-force winds of up to 60 m/s (134 mph) and resist harsh weather impacts (IK10-rated casing, IK08-rated front glass, and IP66- and NEMA 4X-rated). Plus, electronic image stabilization ensures stable images in situations where the camera is subject to vibrations. What’s more, the discreet gray color housing and black weathershield blend right into any traffic environment.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM |
| Design | |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black |
| Housing material | Aluminium, Glass |
| Protection features | Impact resistant, Vandal proof, Weather resistant |
| International Protection (IP) code | IP66 |
| IK code | IK08, IK10 |
| Camera | |
| Minimum illumination | 0.06 lx |
| Angle of rotation | 270° |
| Horizontal field of view (thermal module) | 38 - 2.3° |
| Lens viewing angle, horizontal | 22 - 1.3° |
| Tilt angle range | 0 - 90° |
| Pan range | -180 - 180° |
| Camera pixel size | 2.9 µm |
| Camera shutter speed | 1/111000 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Number of lenses | 1 |
| Focal length range | 7 - 138 mm |
| Auto focus | Yes |
| Identify distance | 1.2 m |
| Detect distance (wide) | 96.7 m |
| Detect distance (tele) | 1884.2 m |
| Observe distance (wide) | 38.4 m |
| Observe distance (tele) | 747.7 m |
| Recognize distance (wide) | 19.3 m |
| Recognize distance (tele) | 376.8 m |
| Identify distance (wide) | 9.7 m |
| Identify distance (tele) | 188.4 m |
| Closest focusing distance | 1.2 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 100 m |
| B/W night vision distance | 50 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, M-JPEG |
| Supported graphics resolutions | 160 x 120, 320 x 180, 1400 x 1050 (SXGA+), 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 90 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, LPCM, OPUS, PCM |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio detection | Yes |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS3 , HTTP/ 2, TLS3 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | HTTPS |
| Intelligent Video Surveillance (IVS) system features | Human detection, Line crossing detection, Moving object, Vehicle detection |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 11 W |
| Power consumption (max) | 29 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 183 mm |
| Depth | 464 mm |
| Height | 183 mm |
| Weight | 3.2 kg |
| Sustainability | |
| Compliance certificates | Electromagnetic Compatibility (EMC), Trade Agreements Act (TAA) |
| Packaging content | |
| Number of cameras | 1 |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Other features | |
| Doesn't contain | BFR, CFR |
