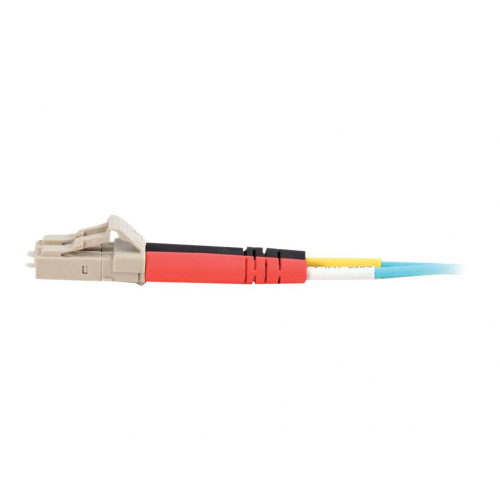

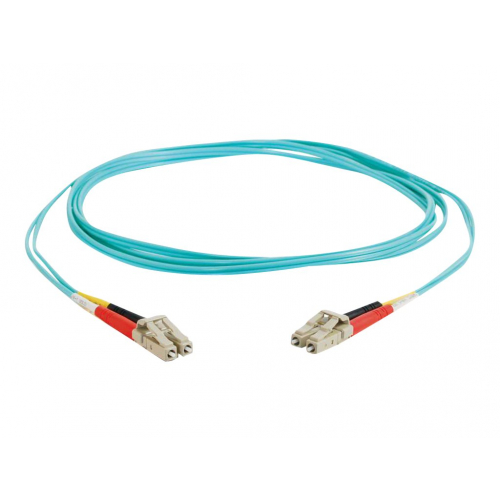

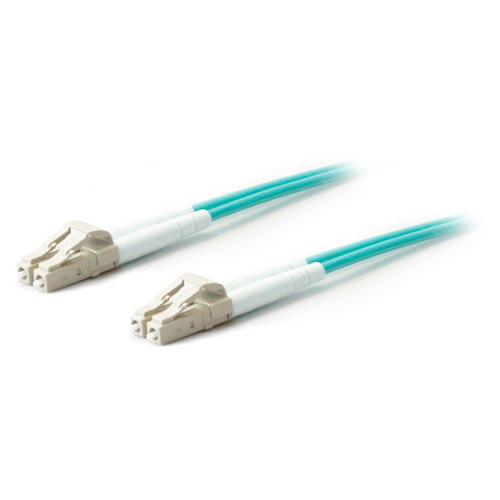

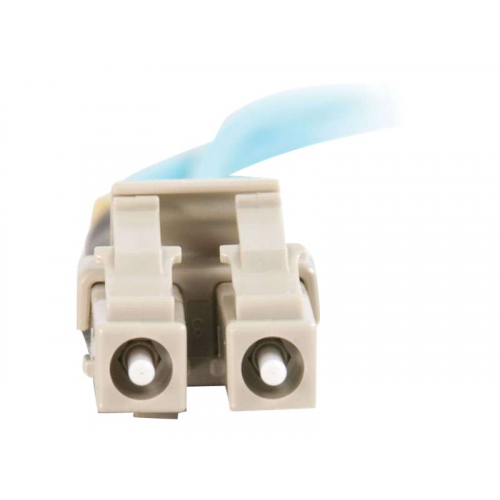

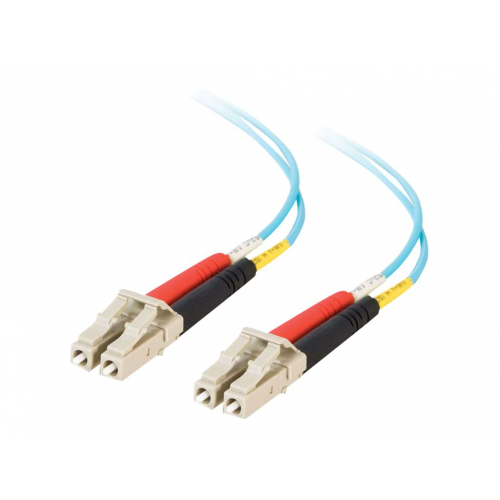

C2G LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fiber Optic Cable (LSZH) - Network cable - LC multi-mode (M) to LC multi-mode (M) - 30 m - fibre optic - 50 / 125 micron - OM3 - halogen-free - aqua
1 of 6
C2G LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fiber Optic Cable (LSZH) - Network cable - LC multi-mode (M) to LC multi-mode (M) - 30 m - fibre optic - 50 / 125 micron - OM3 - halogen-free - aqua
- Connector 1: (1) LC Male
- Connector 2: (1) LC Male
- LSZH rated fibre optic cable designed for 10GBase-SR and 10GBase-LRM ports and equipment
- Low Smoke Zero Halogen (LSZH / LS0H) jacket
 |
Need shopping assistance? |
Product Specification
- Product Code
- H44063756
- Manufacturer Ref
- 85557
- Barcode
- 757120855576
- Fiber Type
- Multimode
- Core/Cladding Diameter
- Core 50um - Cladding 25um
- Fiber Standard
- OM3
- Connection Type
- LC to LC
- Length
- 30m
- Colour
- Aqua
- Brand
- C2G
Product Details
- C2G LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fiber Optic Cable (LSZH) - Network cable - LC multi-mode (M) to LC multi-mode (M) - 30 m - fibre optic - 50 / 125 micron - OM3 - halogen-free - aqua
This OM3 Duplex Multimode Fibre Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network connections. This cable has a LSZH jacket which protects from toxic and corrosive gases in poorly ventilated spaces and other areas where it is most critical. This cable also provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 10 Gigabit Ethernet applications. The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures.
- Warranty Details
This product carries a lifetime warranty - Jacket Rating
The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures - Backwards Compatible
This cable provides backward compatibility with existing 50/125 equipment
Specifications
| General | |
|---|---|
| Network Cable Type | Network cable - OM3 |
| Technology | Fibre optic |
| Type of Fibre Optics | Multimode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Fibre Qty | 2 |
| Core / Cladding Diameter | 50 / 125 micron |
| Features | Halogen-free |
| Length | 30 m |
| Colour | Aqua |
| Connectivity | |

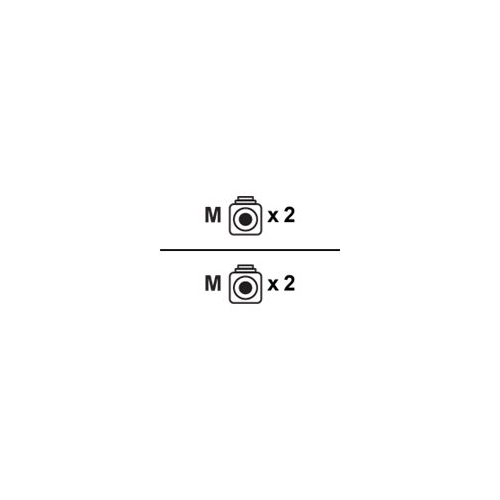

| Connector | 2 x LC multi-mode - male |
| Connector (Second End) | 2 x LC multi-mode - male |
| Miscellaneous | |
| Compliant Standards | TIA/EIA-455-171A |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
Documents
Related Products
Reviews
Share with a friend?
Ask Hunt Office?
C2G LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fiber Optic Cable (LSZH) - Network cable - LC multi-mode (M) to LC multi-mode (M) - 30 m - fibre optic - 50 / 125 micron - OM3 - halogen-free - aqua
C2G LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fiber Optic Cable (LSZH) - Network cable - LC multi-mode (M) to LC multi-mode (M) - 30 m - fibre optic - 50 / 125 micron - OM3 - halogen-free - aqua
Price: €79.95 Ex VAT (€98.34 Inc VAT)
Delivery: 3-5 Days
