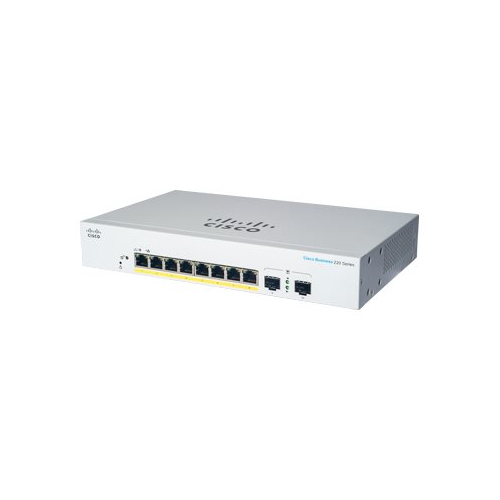

Cisco CBS220-8P-E-2G-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
1 of 1
Cisco CBS220-8P-E-2G-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
- Managed L2 Web-based management SNMP
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8192 entries Switching capacity: 20 Gbit/s
- 512 Access Control List (ACL)
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Frequently bought together
Product Specification
- Product Code
- H44680602
- Manufacturer Ref
- CBS220-8P-E-2G-EU
- Barcode
- 0889728344159, 889728344159
Product Details
- Cisco CBS220-8P-E-2G-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
Product overview
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be priorities, while ongoing management and operations add additional complexity that takes time and resources.
Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network.
Cisco Business 220 Series Smart Switches
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be priorities, while ongoing management and operations add additional complexity that takes time and resources.
Cisco Business is a portfolio of affordable wireless access points, switches, and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring, and lifecycle management of the network.
Cisco Business 220 Series Smart Switches
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 8192 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| IGMP entries | 256 |
| Security algorithms | SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Protocols | |
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Activity, Link, Speed, System |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Firmware upgradeable | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| Power consumption (typical) | 5.7 W |
| Power consumption (max) | 81.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 273.43 BTU/h |
| Weight & dimensions | |
| Width | 279 mm |
| Depth | 170 mm |
| Height | 44 mm |
| Weight | 1.18 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Documents
Related Products
Reviews
Share with a friend?
Ask Hunt Office?
Cisco CBS220-8P-E-2G-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
Cisco CBS220-8P-E-2G-EU network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
Price: €149.90 Ex VAT (€184.38 Inc VAT)
Delivery: 3-5 Days
