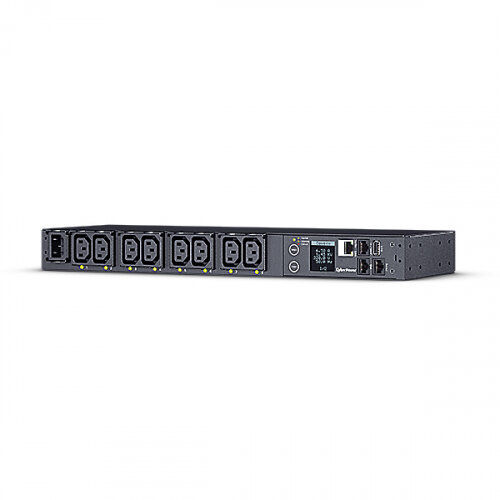

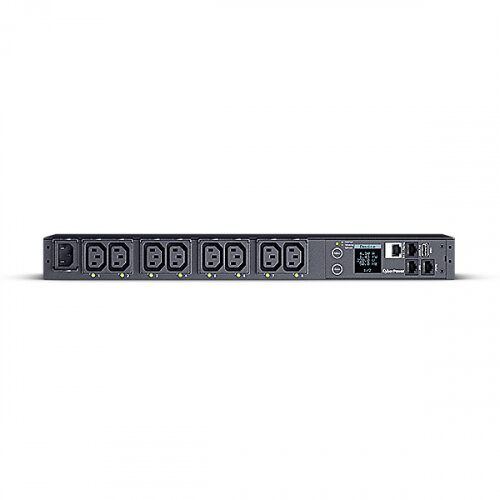

CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black
- Real-Time Local/Remote Monitoring and Switching
- User Configurable Color LCD
- Firmware Upgrade via USB
- Sequential Outlet ON/OFF Control
- Digital Real-time Load Display
Product Specification
- Product Code
- H44611016
- Manufacturer Ref
- PDU41004
- Barcode
- 4712856276701, 0649532614103, 649532614103, 4712856277180
- Brand
- CyberPower
- No Of Sockets
- 8
- Form Factor
- 1U
Product Details
- CyberPower PDU41004 power distribution unit (PDU) 8 AC outlet(s) 1U Black
CyberPower PDU41004 Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
Specifications
| Design | |
|---|---|
| PDU types | Managed, Switched |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Steel |
| Product colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| USB ports quantity | 1 |
| Features | |
| Daisy chain | Yes |
| LED indicators | Link, Status |
| Cable length | 3.05 m |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Management features | |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Power | |
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Maximum current | 12 A |
| Nominal output voltage | 100 - 240 V |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC Class A, UL60950, UL62368, EN 55032 Class A |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3500 m |
| Non-operating altitude | 0 - 15000 m |
| Operating temperature (T-T) | 32 - 140 °F |
| Weight & dimensions | |
| Width | 433 mm |
| Depth | 112 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
| Packaging content | |
| Bundled software | PowerPanel Business, PowerPanel Enterprise |
| Packaging content | PDU41004, User's Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable |
| Packaging data | |
| Package weight | 3.9 kg |
| Package width | 500 mm |
| Package depth | 250 mm |
| Package height | 65 mm |
