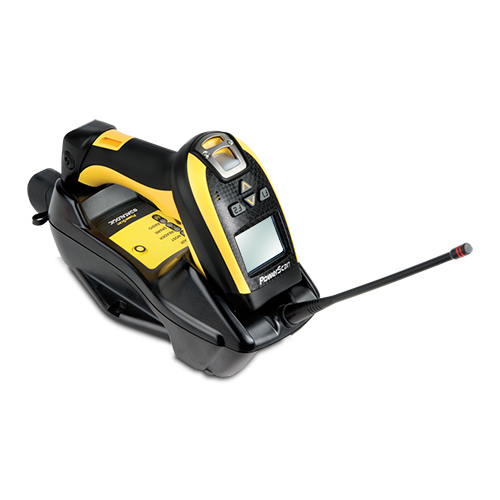

Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow
1 of 1
- Handheld bar code reader Black, Yellow
- Scanner type: 1D Sensor type: LED
- Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C.
- Tilt reading angle: -45 - 45°
- Standard interfaces: RS-232
- Power source type: Battery Lithium-Ion (Li-Ion) 2150 mAh
Frequently bought together
Product Specification
- Product Code
- H44592323
- Manufacturer Ref
- PM9100-D433RBK20
- Barcode
- 5704174466611
- Type
- Handheld
- Connectivity
- Wireless
- Brand
- Datalogic
Product Details
- Datalogic PowerScan PM9100 Handheld bar code reader 1D LED Black, Yellow
The PowerScan PM9100 linear imager is a cordless device offering state-of-the-art performance in an industrial product and features Datalogic’s STAR Cordless System narrow band radio. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
The PM9100 imager also features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PM9100 linear imager is available in 3 models: a basic model with no display or keypad; with display and 4-key keypad or with display and full alphanumeric keypad.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 32, Code 39, Code 93, EAN 2, EAN 5, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, Interleaved 2 of 5, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Tilt reading angle | -45 - 45° |
| Pitch reading angle | -75 - 75° |
| Yaw reading angle | -70 - 70° |
| Ports & interfaces | |
| Standard interfaces | RS-232 |
| Wireless range | 50 m |
| Operating frequency | 433 MHz |
| Performance | |
| International Protection (IP) code | IP65 |
| Protection features | Shock resistant |
| Keys quantity | 4 keys |
| LED indicators | Yes |
| Built-in display | Yes |
| Display resolution | 48 x 132 pixels |
| Backlight display | Yes |
| Product colour | Black, Yellow |
| Power | |
| Power source type | Battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2150 mAh |
| Number of reads per charge | 50000 |
| Battery life | 4 h |
| Input voltage | 10 - 30 V |
| Power consumption | 500 mA |
| Weight & dimensions | |
| Width | 212 mm |
| Depth | 110 mm |
| Height | 74 mm |
| Weight | 435 g |
| Base dimensions (WxDxH) | 240 x 108 x 95 mm |
| Packaging data | |
| Cables included | RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
