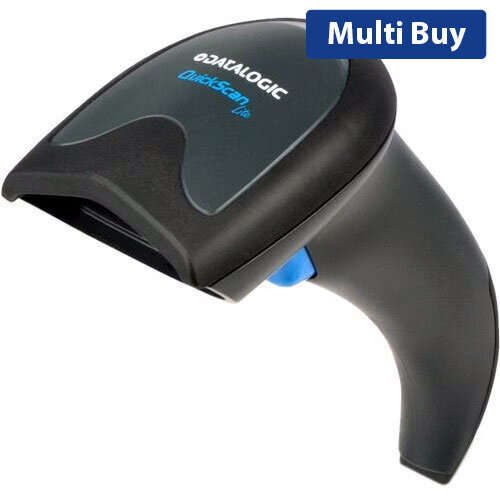

Datalogic QuickScan QW2120-BK Handheld Barcode Scanner - USB Cable Connectivity, Wide Scan Angle, Ergonomic Design, Lightweight, Drop Resistant - 400 scan/s - 1D - Imager - Omni-directional - Colour: Black

The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a ‘tiltable head’ for various angle settings.

The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. The Datalogic Aladdin™ configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

Because this imager was created for specific areas of the world, please check with your Datalogic Representative to inquire if the QW2100 imager is available in your area.

Features
- Wide scan angle
- Laser-like thinner and extended scan line
- Datalogic’s patented ‘Green Spot’ technology for good-read feedback
- Water and Particulate Sealing Rating: IP42
- Drop Resistance to 1.5 m / 5.0 ft
- Uses the same cables and power supplies as the current QuickScan products
- Bulk packaging available (10 scanners per box)
- USB Certified Kits available

The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.


Basic
Colour - Black
Image Sensor - Imager
Connectivity Technology - Cable
Product Type - Handheld Barcode Scanner
Barcode Dimension - 1D
Scan Pattern - Omni-directional
Product Family - QuickScan
Brand Name - Datalogic
Host Interface - USB

Miscellaneous
Environmental Certification - China RoHS
Environmentally Friendly - Yes
Additional Information - USB Cable separate

Environmental Certification - EU RoHS

Physical Characteristics
Weight (Approximate) - 119.1 g
Height - 170.2 mm
Colour - Black
Depth - 68.6 mm
Width - 63.5 mm

Technical Information
Depth of Field - 25.40 mm - 152.40 mm@0.13 mm
Scan Pattern - Omni-directional
Depth of Field - 0 nm - 350.52 mm@0.25 mm
0 nm - 238.76 mm@0.19 mm
Barcode Symbology Supported -
1D / Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Postal Codes:
Australian Post
British Post
Canadian Post
China Post
Japanese Post
KIX Post
Korea Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)
Stacked Codes:

EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
Depth of Field - 0 nm - 398.78 mm@0.33 mm
Image Sensor - Imager
Depth of Field - 0 nm - 599.44 mm@0.51 mm
Barcode Dimension - 1D
Connectivity Technology - Cable
Maximum Scan Resolution - 0.10 mm
Scan Rate - 400 scan/s

General Information
Product Name - General Purpose Corded Handheld Linear Imager Bar Code Reader
Manufacturer - Datalogic S.p.A
Brand Name - Datalogic
Product Model - QW2120-BK
Manufacturer Part Number - QW2120-BKK1
Product Line - QuickScan
Manufacturer Website Address - http://www.datalogic.com
Product Type - Handheld Barcode Scanner

Warranty
Limited Warranty - 3 Year
Interfaces/Ports
Host Interface - USB
