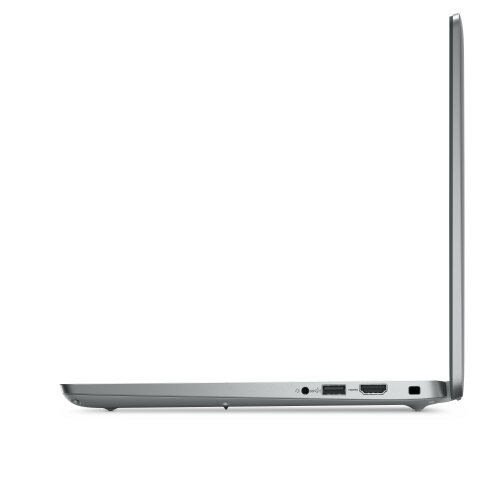

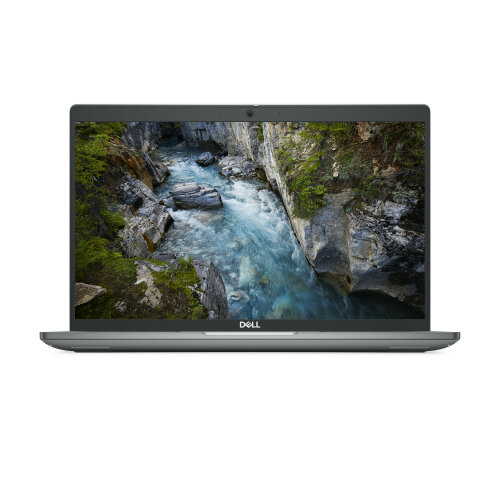

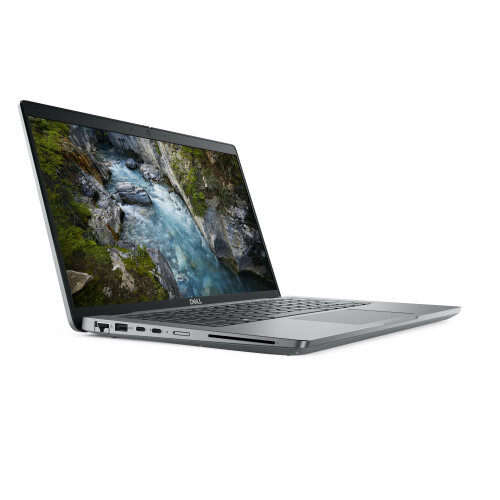

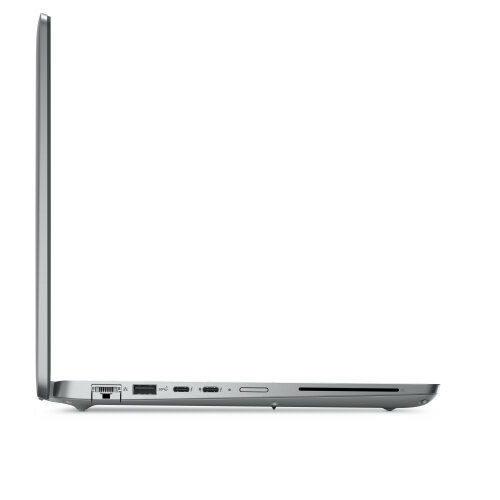

DELL Precision 3490 Intel Core Ultra 7 155H Mobile workstation 35.6 cm (14") Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX 500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 155H (24MB Cache)
- 35.6 cm (14") Full HD 1920 x 1080 IPS, NVIDIA RTX 500 Ada (4GB GDDR6)
- 16GB DDR5-SDRAM (1 x 16) & 512GB SSD
Product Specification
- Product Code
- H44540680
- Manufacturer Ref
- 10385356
- Barcode
- 5397184871256
- Brand
- Dell
- Screen Size Range
- 13-inch to 14.9-inch
- RAM
- 16 GB
- Processor
- Intel Core Ultra 7
- Operating System
- Windows 11 Pro
- Storage Capacity
- 512GB
Product Details
- DELL Precision 3490 Intel Core Ultra 7 155H Mobile workstation 35.6 cm (14") Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX 500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro Grey
Purpose built for Power Users
Ultra-light and mobile, this 14-inch workstation is perfect for professionals who need a compact device for productivity while multi-tasking across applications.
Ultra-light and mobile, this 14-inch workstation is perfect for professionals who need a compact device for productivity while multi-tasking across applications.
- Intelligent performance
AI-enhanced processor and operating system
Fast and efficient Intel® Core™ Ultra 5 and 7 processors 15 & 28W options featuring new Intel® Arc Integrated graphics and NPU for Intel® AI Boost with vPro options.
Graphics and colour
PremierColor, 100% sRGB, up to 400nits 14-inch display, and Intel® Arc Graphics and professional NVIDIA RTX 500 Ada graphics.
Scalable memory
Up to 64GB of DDR5 memory (2 DIMM slots) at 5600 MT/s.
Storage capabilities
Single, removable storage slot offering up to a 2TB NVME SSD.
Advanced thermals
Advanced thermals with Dual Opposite Outlet (DOO) fan and User Selectable Thermal Tables (USTT).
Camera with Privacy Shutter
Improved video experience with HDR cameras and Temporal Noise Reduction. Offers up to an FHD IR camera with EMZA proximity sensor and privacy shutter. - Built for the Power User
Enjoy seamless productivity while multi-tasking across office applications, collaboration tools, and professional software. - AI at your fingertips
Next-level computing: Intel® Core™ Ultra processors enable AI-powered efficiency with AI accelerators within the world’s most intelligent commercial PCs featuring Intel® AI Boost, with vPro options and Copilot in Windows 11. Enjoy power-efficient performance for business workloads with this new CPU, GPU, and NPU three tier multi-processing architecture.
Time saver: Effortlessly jumpstart your workflow with the Copilot Hardware Key on your device, saving you time by providing quick access to the tools you need to start your workday.
AI-accelerated apps: Apps using AI run fast and smooth thanks to the dedicated NPU, so you can enjoy efficient:
Collaboration: Use up to 38% less power when using AI-enhanced collaboration tools during Zoom calls .
Creativity: 132% faster performance when running on-device AI photo editing on Adobe .
Security: Detect malware with less than 1% CPU utilisation using CrowdStrike .
Intelligent collaboration: Users enjoy smoother collaboration with AI-boosts that make Windows Studio Effects even better, with features like smart framing and noise suppression that don’t impact overall system performance.
Personalised performance: Dell Optimizer automatically responds to your workstyle with advance privacy features and built-in AI that optimises audio connectivity, productivity and configurability, all in one software. - Independent software vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications. - Advancing sustainability
Designed with sustainable materials
This Precision workstation is designed thoughtfully with a variety of sustainable materials including post-consumer recycled plastic, recycled carbon fiber, recycled ocean-bound plastic, as well as bio-based materials to help reduce waste and lower environmental impact. This year, this workstation will start shipping with 50% recycled cobalt in the battery .
Elevated Standards
Meeting environmental standards demonstrates how our products adhere to energy-efficiency and other extensive climate-related standards. This workstation is ENERGY STAR® 8.0 rated, TCO certified Generation 9, and EPEAT Gold registered with Climate+ .
Innovative packaging
This laptop ships in packaging made with 100% recycled or renewable materials that is also 100% recyclable . Multipack options are also available to lower transportation and packaging waste . - Dell APEX PC-as-a-Service
Accelerate anywhere work experiences with customisable plans to help you deploy, manage, support devices. Leverage both the built-in protections of our secure commercial PCs and software protections for advanced threats to help ensure a trusted workplace for a predictable price per month.
Specifications
| Design | |
|---|---|
| Product type | Mobile workstation |
| Product colour | Grey |
| Form factor | Clamshell |
| Market positioning | Business |
| Intel® vPro™ Platform Eligibility | Yes |
| Display | |
| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Display brightness | 250 cd/m² |
| Pixel density | 157 ppi |
| Display diagonal (metric) | 35.56 cm |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 600:1 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory data transfer rate | 5600 MT/s |
| Non-ECC | Yes |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| SSD performance class | 35 |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card model | NVIDIA RTX 500 Ada |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | Yes |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
| Audio | |
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| Charging port type | USB Type-C |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery | Yes |
| PowerShare | Yes |
| Performance | |
| Motherboard chipset | Intel SoC |
| Keyboard | |
| Pointing device | Touchpad |
| Keyboard language | UK English |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system language | German, Dutch, English, French, Italian |
| Trial software | No Microsoft Office Licence Included - 30 day Trial Offer Only |
| Operating system installed | Windows 11 Pro |
| Battery | |
| Number of battery cells | 3 |
| Battery capacity | 54 Wh |
| Battery voltage | 11.4 V |
| Battery recharge time | 4 h |
| Fast charging | Yes |
| Battery weight | 220 g |
| Power | |
| AC adapter power | 130 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Smart card reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Weight & dimensions | |
| Width | 321.4 mm |
| Depth | 212 mm |
| Height (front) | 1.91 cm |
| Height (rear) | 2.1 cm |
| Weight | 1.4 kg |
| Carbon footprint | |
| Total carbon footprint | 104 kg of CO2e |
| Carbon emissions (Manufacturing) | 76 kg of CO2e |
| Carbon emissions (Logistics) | 4 kg of CO2e |
| Carbon emissions (Energy Usage) | 23 kg of CO2e |
| Carbon emissions (End-of-Life) | 1 kg of CO2e |
| Total carbon emissions (w/o Use phase) | 81 kg of CO2e |
| PAIA version | GaBi verison1 |
| Packaging content | |
| Cables included | AC |
