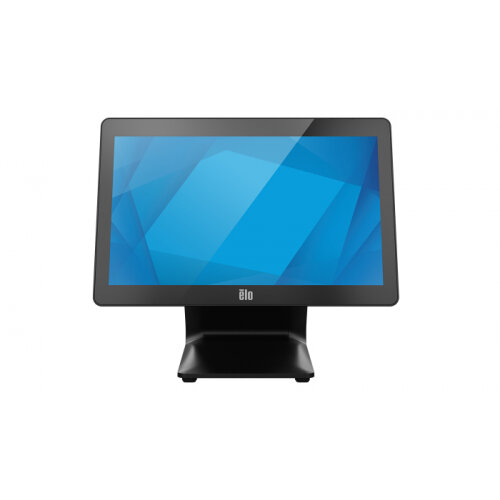

Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Windows 10 IoT Enterprise Wi-Fi 6 (802.11ax) Black
- All-in-One PC Black 180 W
- Intel® Core™ i5 i5-1245UL 1.6 GHz
- Touchscreen 39.6 cm (15.6") Full HD 1920 x 1080 LCD
- 8 GB DDR5-SDRAM 4800 MHz 1 x 8 GB
- 128 GB SSD
- Intel Iris Xe Graphics
- Wi-Fi 6 (802.11ax) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.2
- Windows 10 IoT Enterprise
Safescan LD-4141 Light Duty Cash Drawer Black - Secure 4 Note 8 Coin Compartments with 3-Position Lock
€73.95 ex vat
€90.96 inc vat
€90.96 inc vat
Safescan 4141B Mounting Bracket Black - Pack of 1 - Mounting Brackets for Cash Drawers - Safescan SD-4141 & HD 4141S
€50.00 ex vat
€61.50 inc vat
€61.50 inc vat
Product Specification
- Product Code
- H44592536
- Manufacturer Ref
- E706223
- Barcode
- 0843173154114, 843173154114
Product Details
- Elo Touch Solutions I-Series E706223 All-in-One PC/workstation Intel® Core™ i5 i5-1245UL 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen 8 GB DDR5-SDRAM 128 GB SSD Windows 10 IoT Enterprise Wi-Fi 6 (802.11ax) Black
Completely redesigned
I‑Series 3 with Intel.
Brilliant and beautiful,
interactive platform.
- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
I‑Series 3 with Intel.
Brilliant and beautiful,
interactive platform.
- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Specifications
| Display | |
|---|---|
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 350 cd/m² |
| Panel type | LCD |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1245UL |
| Processor cores | 10 |
| Processor frequency | 1.6 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core boost frequency | 4.4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 28 W |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Optical drive type | No |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| On/off button | Yes |
| Performance | |
| Product type | All-in-One PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| HDD user password | Yes |
| Software | |
| Operating system installed | Windows 10 IoT Enterprise |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 24 V |
| Weight & dimensions | |
| Width (with stand) | 384.1 mm |
| Depth (with stand) | 197.5 mm |
| Height (with stand) | 338.4 mm |
| Weight (with stand) | 6.4 kg |
| Package width | 497 mm |
| Package depth | 345 mm |
| Package height | 487 mm |
| Package weight | 8.9 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil ANATEL; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC |
