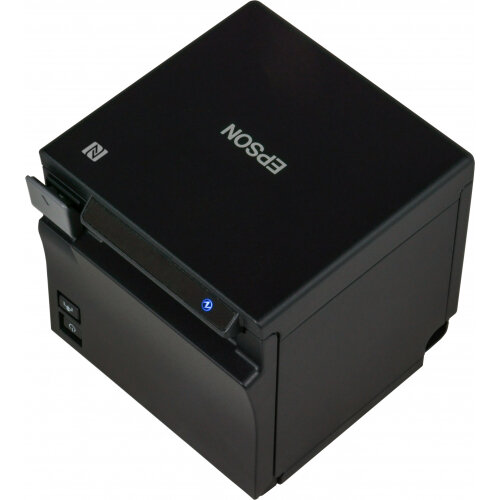

Epson TM-m10 203 x 203 DPI Wired & Wireless Direct thermal POS printer
- 203 x 203 DPI Direct thermal
- USB port
- Bluetooth
- Black
|
Product Specification
- Product Code
- H44506716
- Manufacturer Ref
- C31CE74112
- Barcode
- 8715946605845
Product Details
- Epson TM-m10 203 x 203 DPI Wired & Wireless Direct thermal POS printer
POS printing reimagined with a compact, sleek, 2" receipt printer
The industry’s smallest POS 2" receipt printer in its class, the TM-m10 saves valuable counter space, while offering the freedom to print receipts from virtually any mobile device and/or desktop PC. Ideal for most environments, its modular casing can be easily switched from a top-load to front-load configuration. This versatile printer ensures simple integration with existing mobile POS environments, intuitive functionality and advanced connectivity. The TM-m10 is the first of its kind designed exclusively for small businesses. Featuring ePOS™ print technology, it works with iOS®, Android™ and Windows® mobile devices and desktop PCs, and offers fast, easy setup.
The industry’s smallest POS 2" receipt printer in its class, the TM-m10 saves valuable counter space, while offering the freedom to print receipts from virtually any mobile device and/or desktop PC. Ideal for most environments, its modular casing can be easily switched from a top-load to front-load configuration. This versatile printer ensures simple integration with existing mobile POS environments, intuitive functionality and advanced connectivity. The TM-m10 is the first of its kind designed exclusively for small businesses. Featuring ePOS™ print technology, it works with iOS®, Android™ and Windows® mobile devices and desktop PCs, and offers fast, easy setup.
Specifications
| Printing | |
|---|---|
| Colour | N |
| Maximum resolution | 203 x 203 DPI |
| Print speed | 150 mm/sec |
| Print speed (receipt) | 150 mm/sec |
| Character sets | ANK |
| Print technology | Direct thermal |
| Type | POS printer |
| Paper handling | |
| Maximum roll diameter | 6 cm |
| Supported paper width | 57.5 mm |
| Maximum printing width | 5.25 cm |
| Ports & interfaces | |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| Bluetooth | Y |
| Bluetooth version | 3.1 |
| Connectivity technology | Wired & Wireless |
| Near Field Communication (NFC) | Y |
| Standard interfaces | Bluetooth, USB 2.0 |
| Network | |
| Ethernet LAN | N |
| Wi-Fi | N |
| Features | |
| Built-in barcodes | CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E |
| Sound pressure level (printing) | 55 dB |
| Mean time between failures (MTBF) | 360000 h |
| Cutter | Y |
| Half-cutter | Y |
| Autocutter durability | 1 million cuts |
| Print head life | 100 km |
| Country of origin | China |
| Mounting position | Horizontal/Vertical |
| Built-in sensors details | Paper End Sensor, Papier-Sensor |
| Safety | EMI FCC Class A, CAN ICES-3(A)/NMB-3(A), UL60950-1/CSA C22.2 No.60950-1 |
| Design | |
| Product colour | Black |
| Power | |
| Power consumption (printing) | 15.9 W |
| Power plug type | Type C |
| Power supply type | AC |
| Power consumption | 1500 mA |
| Power consumption (standby) | 100 mA |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Mobile operating systems supported | Android, Windows Mobile, iOS |
| Weight & dimensions | |
| Width | 102 mm |
| Depth | 102 mm |
| Height | 102 mm |
| Weight | 900 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 197 mm |
| Package depth | 237 mm |
| Package height | 179 mm |
| Package weight | 1.61 kg |
| Packaging content | |
| AC adapter included | Y |
| Print technology | |
| Column capacity | 35/42 |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 160 pc(s) |
| Products per pallet layer | 32 pc(s) |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Pallet gross height | 95 cm |
| Products per pallet (UK) | 240 pc(s) |
| Products per pallet layer (UK) | 48 pc(s) |
| Pallet width (UK) | 100 cm |
| Pallet length (UK) | 120 cm |
| Pallet height (UK) | 95 cm |
| Technical details | |
| Font styles | ANK |
| Lifetime | 15000000 lines |
| Other features | |
| Buffer size | 64 KB |
| LED indicators | Y |
| Mean cycles between failures (MCBF) | 60000000 |
| Print head life | 100 km - 100.000.000 Impulse |
