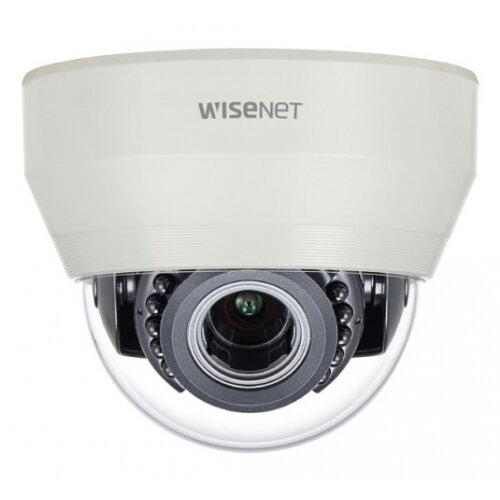

Hanwha HCD-6070R security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
- Full HD resolution
- 0.11Lux@F1.4(Color), 0Lux(B/W : IR LED on)
- 3.2~10mm(3.1x) varifocal lens
- Day & Night(ICR), WDR(120dB)
- SSNRⅣ, Motion detection
- IR viewable length : 65 feet, IP66, IK10, Dual power
- Transmission ditance Max.500m
- Easy installation (Plug & play), Dual power, RS-485
Product Specification
- Product Code
- H44593101
- Manufacturer Ref
- HCD-6070R
- Barcode
- 8801089091703
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor & Outdoor
- Brand
- Hanwha
- Memory Type
- Connects to External Storage
Product Details
- Hanwha HCD-6070R security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Wisenet HD+ 2MP, full HD (1080p), 30fps IR indoor dome camera, AHD/TVI/CVI/CVBS, manual vari-focal Lens (3.1x) (3.2~10mm), 120dB true WDR, true D/N, 24VAC/12VDC, IR distance 65 feet
Specifications
| Performance | |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Maximum operating distance | 500 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Number of languages | 16 |
| Languages support | Czech, Danish, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, SER, Swedish, Turkish |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Ivory |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Fog proof | Yes |
| Camera | |
| Minimum illumination | 0 lx |
| Angle of rotation | 355° |
| Lens viewing angle, horizontal | 110.2° |
| Lens viewing angle, vertical | 55.4° |
| Lens viewing angle, diagonal | 128.4° |
| Tilt angle range | 0 - 67° |
| Pan range | 0 - 350° |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30 - 1/12000 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Number of effective pixels (H x V) | 1945 x 1097 pixels |
| Lens system | |
| Focal length range | 3.2 - 10 mm |
| Focus | Manual |
| Maximum aperture number | 1.6 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Noise reduction | Yes |
| Full HD | Yes |
| Privacy masking | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
| Storage | |
| Built-in HDD | No |
| Ports & interfaces | |
| BNC output ports | 1 |
| Security | |
| Video motion detection | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | AC, DC |
| AC input voltage | 24 V |
| Power consumption (max) | 4.2 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Height | 98.5 mm |
| Diameter | 12 cm |
| Weight | 320 g |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Colour | Yes |
| Lens mount interface | Board mount |
