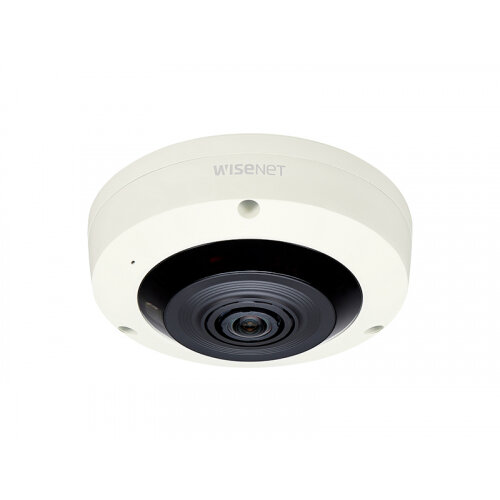

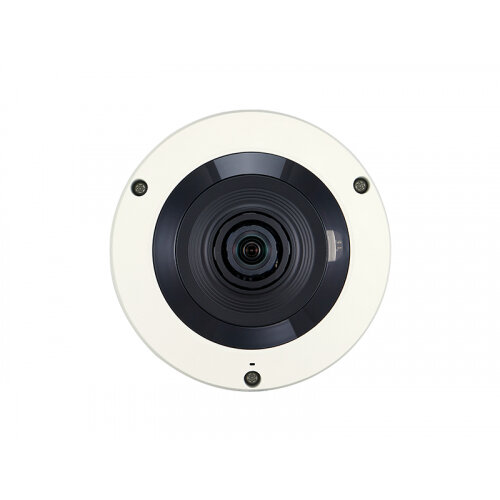

Hanwha XNF-8010R security camera Dome IP security camera Indoor & outdoor 2048 x 2048 pixels Ceiling
- Max 30fps
- Fisheye lens 1.6mm (192°X192°) W/ simple focus
- Built-in IR for up to 49’ or 15m
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB @30fps
- Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
- Sound classification, heatmap, people counting and queue line management
- Dual SD cards
- Power: PoE or 12VDC
Product Specification
- Product Code
- H44593108
- Manufacturer Ref
- XNF-8010R
- Barcode
- 8801089142313, 8801089106810
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor & Outdoor
- Brand
- Hanwha
- Memory Type
- SD & SDHC & SDXC
Product Details
- Hanwha XNF-8010R security camera Dome IP security camera Indoor & outdoor 2048 x 2048 pixels Ceiling
Wisenet X powered by Wisenet 5 network indoor fisheye, 6MP CMOS sensor, 2048x2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Languages support | Simplified Chinese, Czech, Danish, German, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish |
| Certification | FCC, CE |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Ivory |
| Housing material | Aluminium |
| Fog proof | Yes |
| Camera | |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 192° |
| Lens viewing angle, vertical | 192° |
| Lens viewing angle, diagonal | 192° |
| White balance | ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 - 1/12000 s |
| Image sensor | |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Number of effective pixels (H x V) | 3096 x 2094 pixels |
| Lens system | |
| Zoom capability | Yes |
| Digital zoom | 8x |
| Focus | Manual |
| Maximum aperture number | 1.6 |
| Fixed focal length | 1.6 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Video | |
| Maximum resolution | 2048 x 2048 pixels |
| Total megapixels | 6 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 640 x 480 (VGA), 704 x 576, 800 x 600 (SVGA), 960 x 960, 1024 x 768 (XGA), 1280 x 960, 1600 x 1200 (UXGA), 1920 x 480, 2048 x 1536 (QXGA) |
| Supported video modes | 480p, 768p, 960p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| 3D NR (Noise Reduction) | Yes |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Audio | |
| Audio input channels | 1 channels |
| Audio formats supported | G.711, G.726, LC-AAC |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Built-in microphone | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP |
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100Base-T(X) |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
| Microphone in | Yes |
| Interface | RJ-45 |
| Security | |
| Video motion detection | Yes |
| Alert notification type | |
| Anti-flicker | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 11 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Weight & dimensions | |
| Height | 54.8 mm |
| Diameter | 14.6 cm |
| Weight | 730 g |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| USB connectivity | Yes |
| Technical details | |
| Colour | Yes |
| Lens mount interface | Board mount |
