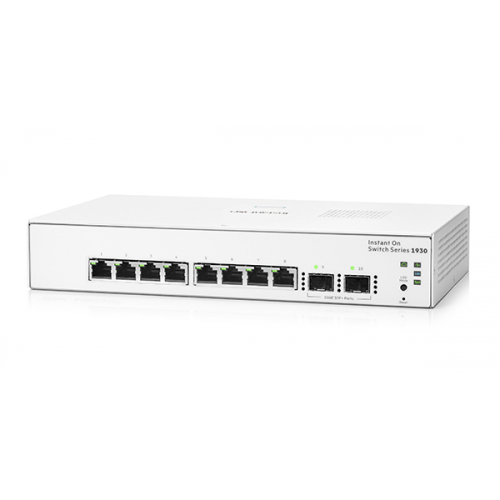

HPE Aruba Networking JL680A network switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) 1U White
1 of 1
HPE Aruba Networking JL680A network switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) 1U White
- Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity
- Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility
- 1G/10G SFP+ ports on 24-and 48-port models for fiber connectivity
- Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely
- Option to manage your switches through local web GUI
- Limited Lifetime Warranty
Frequently bought together
Product Specification
- Product Code
- H44610693
- Manufacturer Ref
- JL680A
- Barcode
- 0190017355085, 190017355085, 0190017355009, 190017355009, 0190017355078, 190017355078, 5704174803713
- No of Ports
- 8 Ports
- Brand
- HP
Product Details
- HPE Aruba Networking JL680A network switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) 1U White
DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 and 2 SFP 1GbE ports.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 32 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Auto-sensing | Yes |
| Active link detection | Yes |
| VLAN support | Yes |
| Number of VLANs | 4093 |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.88 Mpps |
| MAC address table | 8000 entries |
| Latency (10-100 Mbps) | 5.2 µs |
| Latency (1 Gbps) | 3 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | White |
| Performance | |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 800 MHz |
| Memory type | SDRAM / Flash |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Fanless | Yes |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.2 A |
| Power consumption (max) | 11 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 254 mm |
| Depth | 159.5 mm |
| Height | 43.9 mm |
| Weight | 1.16 kg |
