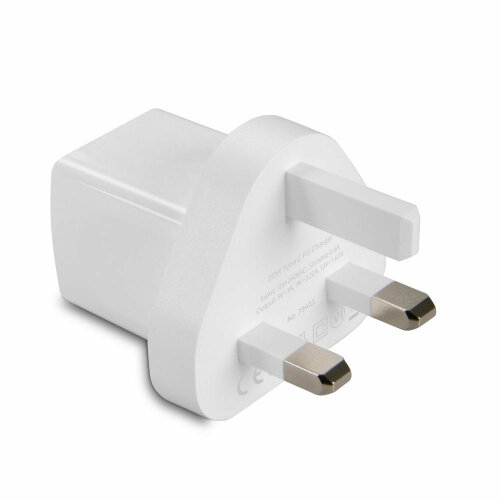

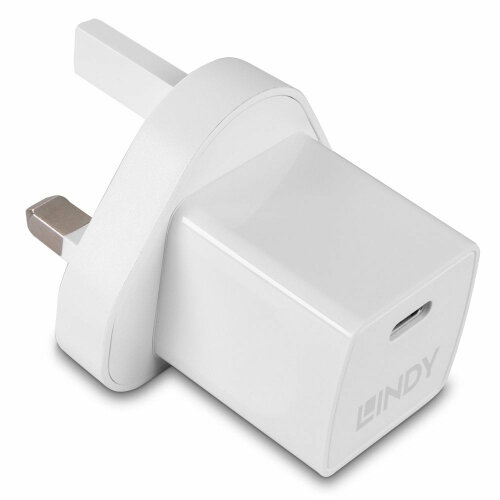

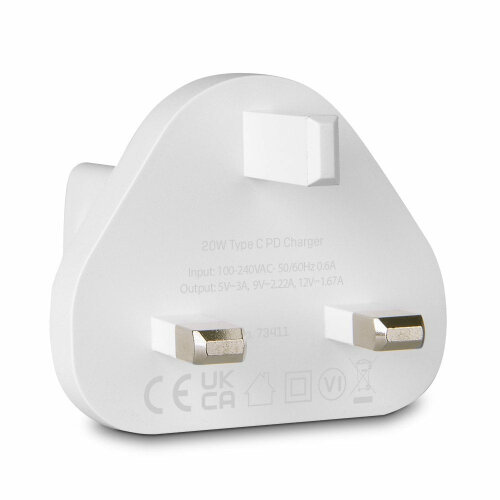

Lindy 20W USB Type C GaN Charger
- Charges and powers a device via one USB Type C port
- 20W GaN technology provides fast charging for smartphones, tablets, laptops and other mobile devices
- Compact design and lightweight for maximum mobility
- Built-in safety features as overvoltage and overcurrent protection
Product Specification
- Product Code
- H44509018
- Manufacturer Ref
- 73411
- Barcode
- 4002888734110
- Brand
- Lindy
- Type
- AC Charger
- Color
- White
- Connector
- USB-C
Product Details
- Lindy 20W USB Type C GaN Charger
The Lindy 20W USB Type C PD Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when power is needed.
Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.
Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.
Specifications
| Performance | |
|---|---|
| Charger compatibility | Universal |
| Power source type | AC |
| USB Type-C ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | GaN, Power Delivery 3.0 |
| Charger type | Indoor |
| Number of simultaneously connected devices (max) | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| Power protection features | Over current, Over voltage, Overheating, Short circuit |
| Design | |
| Product colour | White |
| Housing material | Polyvinyl chloride (PVC) |
| Connector material | Copper |
| Gallium nitride (GaN) transistors | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 0.5 A |
| Maximum power | 20 W |
| Maximum output voltage | 12 V |
| Minimum output voltage | 5 V |
| Output voltage accuracy (±) | 5% |
| Output current (5V) | 3 A |
| Output current (9V) | 2.22 A |
| Output current (12V) | 1.67 A |
| Power consumption (no load) | 0.075 W |
| Average active efficiency | 5V 83.37%, 9V 87.32%,12V 86.40% |
| Efficiency at low load (10%) | Yes |
| Compatible power plug types | UK |
| Weight & dimensions | |
| Width | 28 mm |
| Depth | 31 mm |
| Height | 29.6 mm |
| Weight | 40 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Package width | 80 mm |
| Package depth | 100 mm |
| Package height | 45 mm |
| Package weight | 60 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 25 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, ErP, REACH, RoHS, UKCA |
