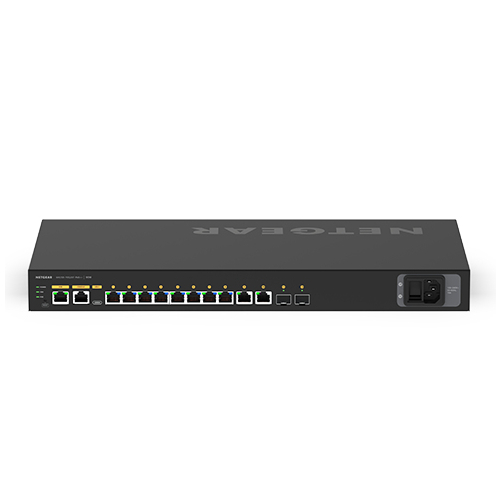

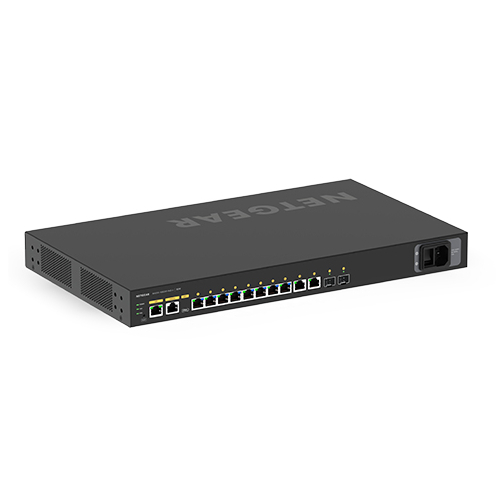

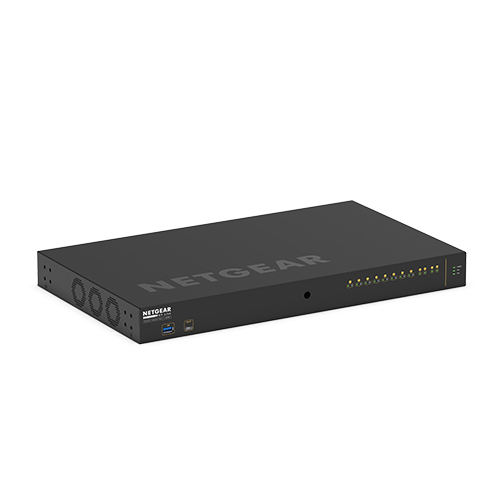

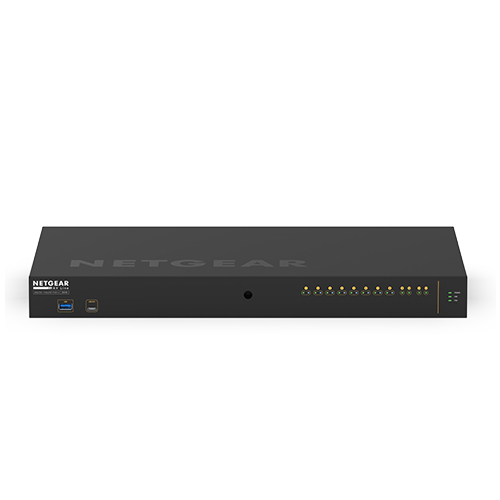

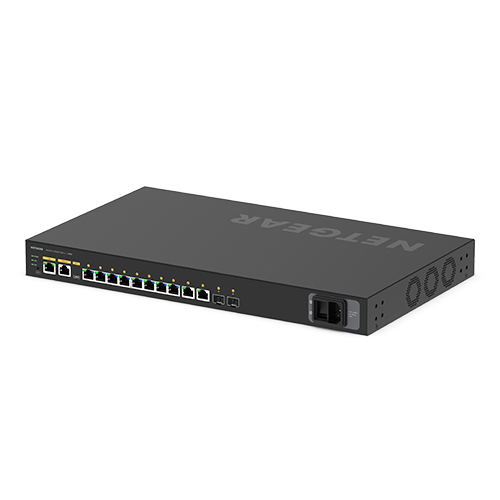

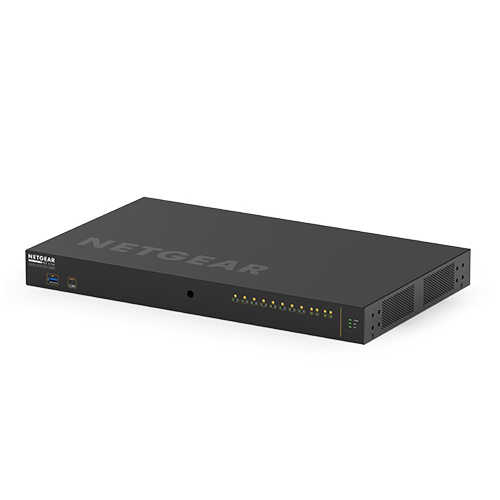

NETGEAR M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
1 of 6
NETGEAR M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Dedicated AV web-based GUI interface for more specific AV installations
- Color-based AV profiles can be applied to the different ports
- Dante, Q-SYS, AES67 and AVB audio profiles
- AVB requires an AVB4212P-10000S license (sold separately)
- NVX, SVSI, Q-SYS, NDI and Dante video profiles
- Audio / video / control mixed profiles
- Automatic switch interconnect with NETGEAR IGMP Plus
- Common Layer 2 and Layer 3 switching engine across all M4250 models
- Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series
- Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
Frequently bought together
Product Specification
- Product Code
- H44621098
- Manufacturer Ref
- GSM4212UX-100EUS
- Barcode
- 0606449149623, 606449149623, 10606449149620
- No of Ports
- 10 Ports
- Brand
- Netgear
Product Details
- NETGEAR M4250-10G2XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| Data transmission | |
| Switching capacity | 60 Gbit/s |
| Throughput | 44.64 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 1.837 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Security | |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| Multicast features | |
| Multicast support | Yes |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | PoE, Power, Status |
| Performance | |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 66.23 dB |
| Mean time between failures (MTBF) | 947871 h |
| Power | |
| Power consumption (typical) | 837.7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 720 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 2859.91 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 200 mm |
| Height | 43.2 mm |
| Weight | 3.83 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
