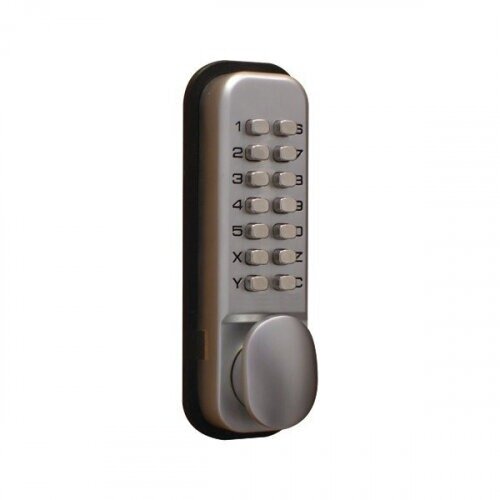

Lockit Mechanical Push Button Combination Door Lock Chrome DXLOCKITHB/C
- Combination Door Lock
- Button operated lock for secure doors.
- Features 10 numbers and 4 letters.
- 8,000 possible combinations that can be changed regularly.
- Mechanical operation - no need for wires or batteries.
- Snib holdback facility.
- Finish: Satin Chrome.
- This item is suitable for doors up to 54mm thick.
Frequently Bought Together
1. Master Lock Select Access 4-Digit Combination Lock Key Storage Unit 5401D |
€64.95 | |
€299.50 |
Product Specification
- Product Code
- SEC09153
- Weight
- 1.28 kg
- Pack Size
- 1
- Pack Dimensions
- 102x177x60 mm
- Manufacturer Ref
- DXLOCKITHB/C
- Barcode
- 5030282091538
- Alternative Code(s)
- 180201
- Type
- Digital Door Lock
Product Details
- Lockit Mechanical Push Button Combination Door Lock Chrome DXLOCKITHB/C
Keypad Locks
If you are looking to secure a door with restricted access to people with a pass code and you looking for easy installation then you should consider the Securikey Keypad Door Lock.
• Type: Keypad door lock from Securikey
• The Securikey digital door lock prevents unauthorised entry to restricted areas
• Code change facility with over 8,000 possible combinations
• Fail-safe design gives free egress at all times
• Snib holdback facility supplied as standard
• keypad lock
• Mechanical operation - no wiring or batteries required
• Anti-thrust latch for added security
• Non-handed and easy to fit – template supplied
• Durable Satin Chrome plated finish
• The Securikey keypad door lock is recommended for light duty internal use
Securikey Keypad Door Lock Dimensions:
Lock – 141mm high x 40mm wide x 21mm deep. Fitted with short paddle handle
Internal plate – 142mm high x 41mm wide x 9mm deep. Fitted with 75mm long paddle handle
Latch diameter - 19mm
Backset – 60mm
The Securikey keypad door lock is suitable for doors up to 54mm thick
How to Change your Securikey Keypad Door Lock Code Number
1) Remove the securikey keypad door lock from the door
2) Remove the 4 retaining screws from the back of the keypad. Take EXTRA care to keep the keypad on a flat surface, when you are removing the covering plate, because there are a lot of small components inside.
3) You will now see that here are 5 red coloured coded tumblers and 8 blue coloured uncoded tumblers plus 1 clear tumbler (‘C’ button).
4) To change your code push the ‘C’ button down and hold it. You can the easily remove 1 or more of your coded & uncoded tumblers, using the tweezers supplied. Remember, the red tumblers represent coded digits and the blue represent non-coded digits
5) Please note you should NEVER remove the ‘C’ Tumbler
6) Please note the different shapes of tumblers, before reinserting them into the lock body. Firstly there is a difference in shape between the coded & uncoded tumblers, illustrated below. And secondly when refitting the tumblers into the lock body, they must be fitted facing the right way, again see the illustration below. (All square cut-outs must face outwards)
7) After you have refitted the tumblers and make a note of the new code, please replace the metal plate with the 4 screws
8) PLEASE NOTE – With the spare tumblers provided, you can either increase the number of digits in your code to 6 – 7 or reduce to 3 – 4.
