TP-Link Omada IES208G network switch Managed Gigabit Ethernet (10/100/1000)
1 of 5
- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Frequently bought together
Product Specification
- Product Code
- H44672115
- Manufacturer Ref
- IES208G
- Barcode
- 1210002602099, 0840460600941, 840460600941
Product Details
- TP-Link Omada IES208G network switch Managed Gigabit Ethernet (10/100/1000)
Enhanced Networking Stability and Security

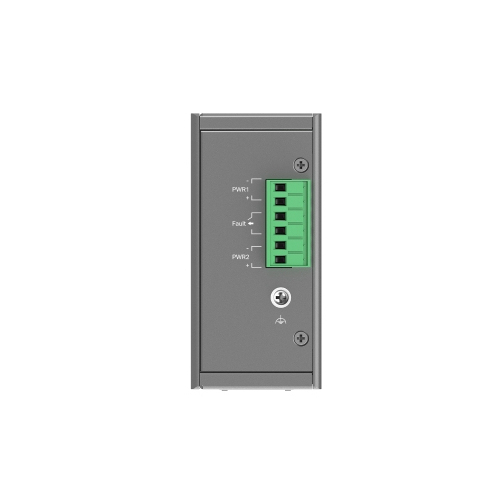

1+1 Redundant Power Input
Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Easy Operation and Maintenance with Omada’s Free Cloud Management
1+1 Redundant Power Input
Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Easy Operation and Maintenance with Omada’s Free Cloud Management
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Security | |
| IGMP snooping | Yes |
| Static port security | Yes |
| Design | |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Power | |
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 9.6 - 60 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
| Width | 129 mm |
| Depth | 95 mm |
| Height | 45 mm |
