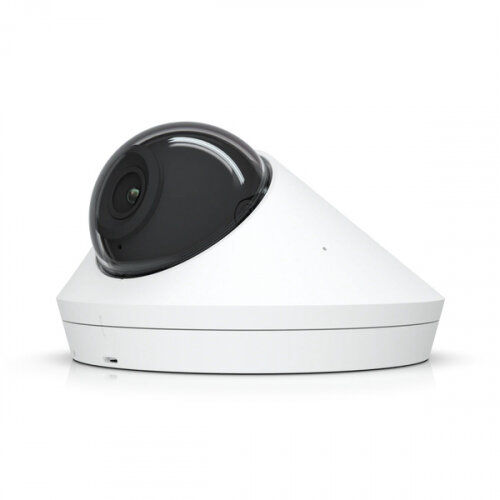

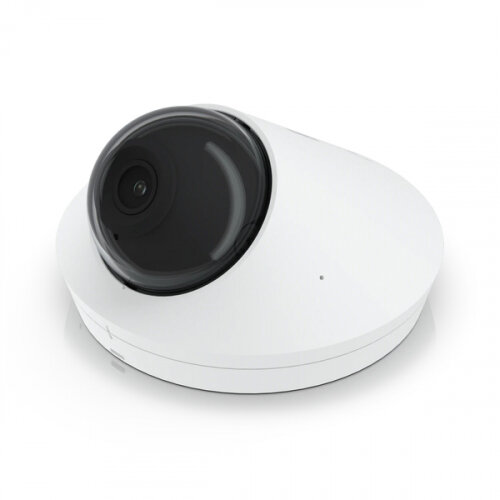

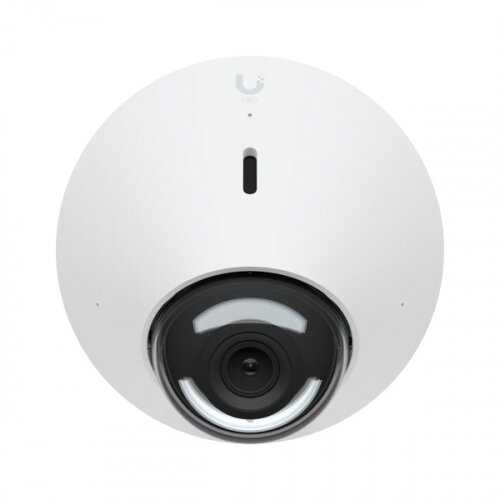

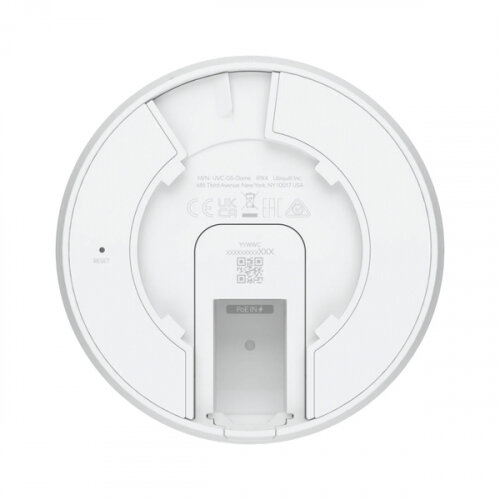

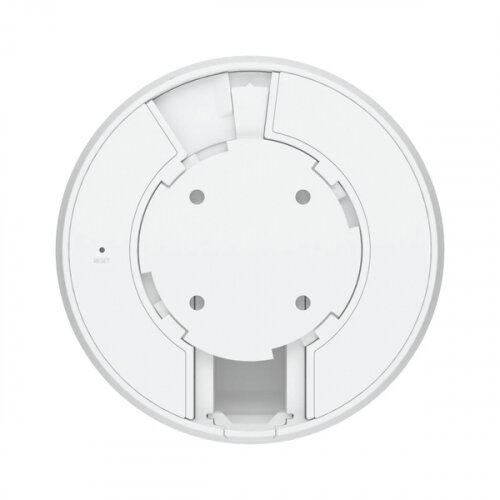

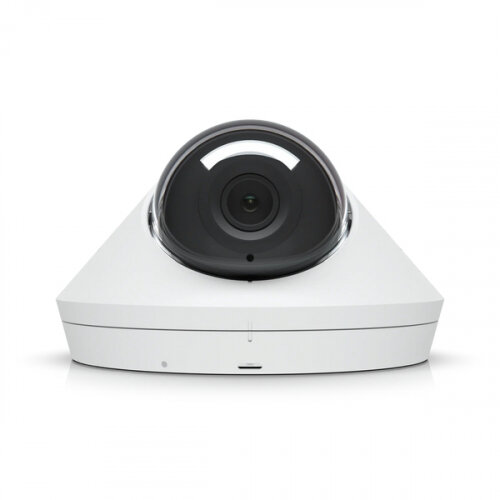

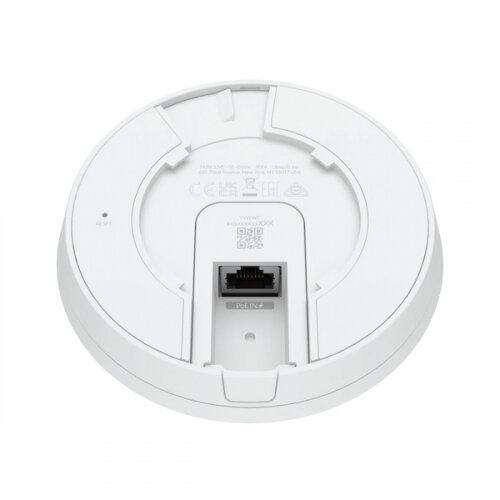

Ubiquiti UVC-G5-Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
- 2K HD, 30 FPS camera with a 5MP CMOS sensor
- Wide-angle view (102.4˚)
- Weatherproof IPX4-rated enclosure with IK08-rated vandal resistance
- Improved low-light performance and IR night vision up to 10m
- Improved dynamic range
Product Specification
- Product Code
- H44593112
- Manufacturer Ref
- UVC-G5-DOME
- Barcode
- 0810084690208, 810084690208
- Type
- Security Camera
- Suitable for
- Day & Night
- Use
- Indoor & Outdoor
- Brand
- Ubiquiti
- Memory Type
- Connects to External Storage
Product Details
- Ubiquiti UVC-G5-Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Processor model | ARM Cortex-A7 |
| Built-in processor | Yes |
| Certification | FCC, IC, CE |
| Design | |
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium, Polycarbonate (PC), Stainless steel |
| International Protection (IP) code | IPX4 |
| IK code | IK08 |
| Camera | |
| Camera pan control | Yes |
| Lens viewing angle, horizontal | 102.4° |
| Lens viewing angle, vertical | 71.4° |
| Lens viewing angle, diagonal | 134.3° |
| Image sensor | |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Number of lenses | 1 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Video | |
| Maximum resolution | 2688 x 1512 pixels |
| Total megapixels | 5 MP |
| Video compression formats | H.264, M-JPEG |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Image quality adjustment | Brightness, Colour depth, Contrast, DNR |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi | No |
| Bluetooth | No |
| Storage | |
| Built-in HDD | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| AC input voltage | 37 - 57 V |
| Power consumption (typical) | 5 W |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Depth | 64.2 mm |
| Diameter | 10.9 cm |
| Weight | 390 g |
| Packaging content | |
| Number of cameras | 1 |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
