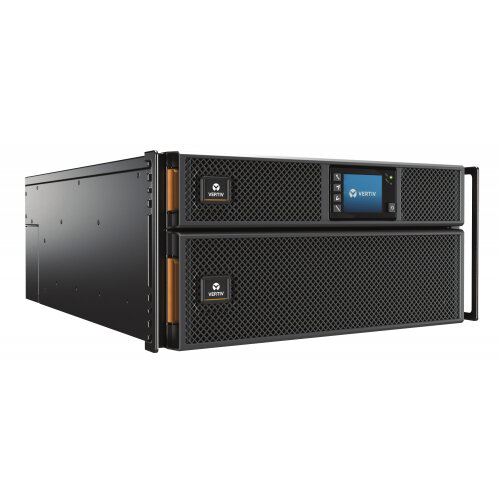

Vertiv Liebert GXT5 Double Online Conversion UPS -6000VA/6000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-6000IRT5UXLN
- It offers reliable, easy-to-manage power protection and battery backup with 6kVA (6kW) capacity.
- It has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- It includes a built-in Vertiv RDU101 network communications card for remote management.
- It comes with a Vertiv 3-year warranty plus a 2-year extension for a total of 5 years in coverage.
- It is ENERGY STAR® 2.0 certified with higher efficiency, for energy savings and improved reliability.
Product Specification
- Product Code
- H44648961
- Manufacturer Ref
- GXT5-6000IRT5UXLN
- Barcode
- 0767041026658, 767041026658
- Power Rating VA
- 2000 - 7999 VA
- Power Provided
- 2000 - Watt
- Brand
- Vertiv
- Type
- Online-Double Conversion
Product Details
- Vertiv Liebert GXT5 Double Online Conversion UPS -6000VA/6000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-6000IRT5UXLN
Specifications
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Efficiency | 94% |
| Noise level | 55 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries included | 16 pc(s) |
| Typical backup time at full load | 5.5 min |
| Typical backup time at half load | 14.5 min |
| Design | |
| Form factor | Tower |
| Rack capacity | 5U |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Batteries included | Yes |
| Cables included | USB cable |
| Manual | Yes |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 430 mm |
| Depth | 630 mm |
| Height | 217 mm |
| Weight | 70.8 kg |
