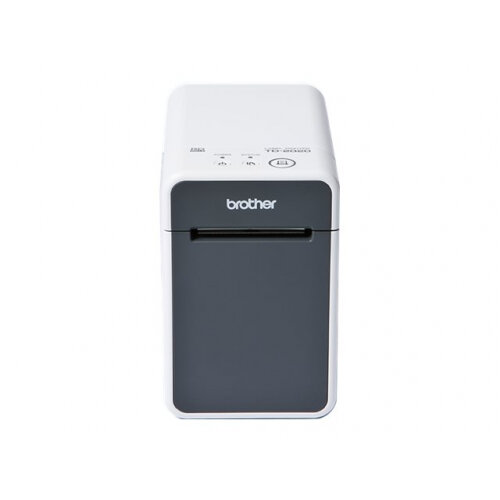

Brother TD-2020 - Label printer - thermal paper - Roll (6.3 cm) - 203 dpi - up to 152.4 mm/sec - USB 2.0, serial
- Fast print speed
- High print resolution
- USB and serial connectivity
|
Product Specification
- Product Code
- IM-5837651
- Manufacturer Ref
- TD2020ZU1
- Barcode
- 4977766720489
- Type
- DeskTop
- Network
- Cable
- Operation
- Connect to PC
- Print Type
- Black
- Brand
- Brother
- Series
- TD
- Colour
- White
Product Details
- Brother TD-2020 - Label printer - thermal paper - Roll (6.3 cm) - 203 dpi - up to 152.4 mm/sec - USB 2.0, serial
Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD-2020 combines proven desktop printer performance with another levels of efficiency to help you do more for less.
Specifications
| General | |
|---|---|
| Printer Type | Label printer - direct thermal - monochrome |
| Printer | |
| Connectivity Technology | Wired |
| Interface | USB 2.0, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | EPSON ESC/P, ZPL II, EPSON ESC/P Raster |
| Features | Black Mark sensor, gap sensor |
| RAM | |
| RAM Installed (Max) | 6 MB / 32 MB (max) |
| Media Handling | |
| Media Type | Labels, receipt paper, die cut labels, tag, wristbands |
| Compatible Tapes | RD tape |
| Max Media Size | Roll (6.3 cm) |
| Min Media Size (Custom) | 19 mm |
| Max Media Size (Custom) | 63 mm |
| Media Sizes | Roll (6.3 cm) |
| Max Printing Width | 56 mm |
| Max Printing Length | 1 m |
| Media Thickness Range | 0.058 mm - 0.279 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (6.3 cm) |
| Expansion / Connectivity | |
| Connections | 1 x serial ¦ 1 x USB 2.0 - 4 pin mini-USB Type B |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Power | |
| Power Device | Power adapter |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| Software Included | Brother P-touch Editor 5 |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 11 cm |
| Depth | 21.5 cm |
| Height | 17.2 cm |
| Weight | 1.32 kg |
