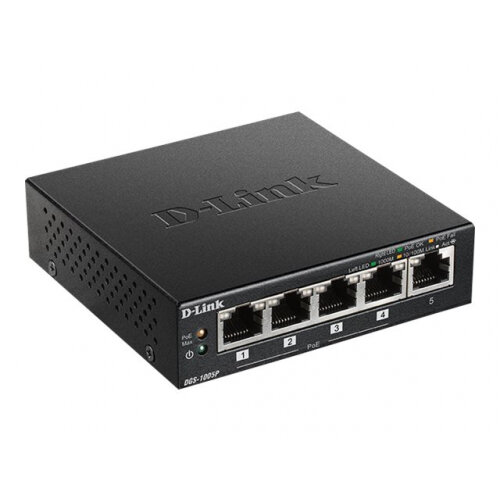

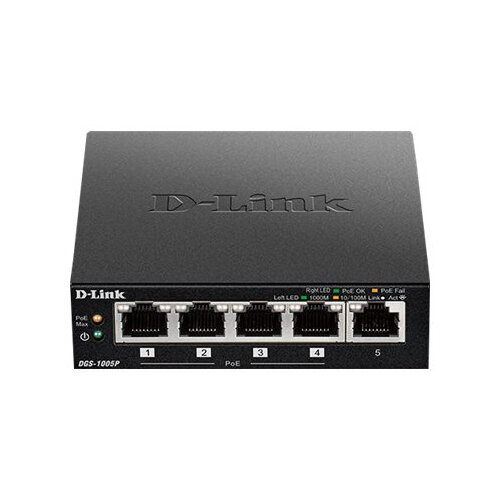

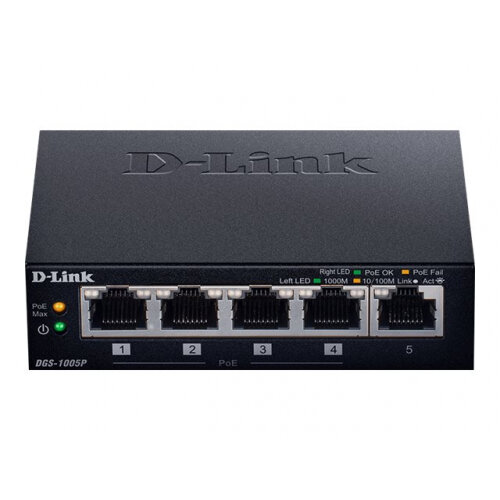

D-Link DGS 1005P - Switch - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (60 W)
- 5x Gigabit Ethernet ports (4x PoE+ ports)
- PoE+, 60W power budget
- 10 Gbps switching fabric capacity
- Plug & Play simplicity for easy installation
|
Product Specification
- Product Code
- H44374816
- Manufacturer Ref
- DGS-1005P/B
- Barcode
- 0790069464270
Product Details
- D-Link DGS 1005P - Switch - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (60 W)
The D‑Link DGS‑1005P 5‑Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and IP phones to the network. Built with home and small business users in mind, the DGS‑1005P is compact and operates silently, making it ideal for most rooms and offices.
- Gigabit performance
The DGS-1005P features plug-and-play installation and requires no configuration. Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1005P maximizes network performance while minimizing the transmission of bad network packets. - Power Over Ethernet+
The DGS-1005P features four Gigabit Ethernet ports that support the IEEE 802.3af and IEEE 802.3at PoE, supplying up to 30 W on each PoE port and providing a total power budget of 60 W. You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and power supplies and to install devices on locations without immediate access to power outlets. - Green technology
The DGS-1005P features green technology such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. EEE adjusts the power consumption of the switch based on network utilization, reducing energy use during periods of inactivity. Link status detection powers down unused ports, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch. - Compact and silent
The compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.
Specifications
| General | |
|---|---|
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (4 PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 60 W |
| Performance | Switching fabric speed: 10 Gbps ¦ Forwarding rate: 7.44 Mpps ¦ Switching fabric speed: 10 Gbps |
| MAC Address Table Size | 2K entries |
| Features | Auto-uplink (auto MDI/MDI-X), packet filtering, store and forward, fanless, Energy-Efficient Ethernet (EEE) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, status, link/activity, link/speed |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 4 ports (PoE+) - 30 W |
| Miscellaneous | |
| Compliant Standards | Plug and Play, VCCI, BSMI, cUL, CB, FCC, LVD, RCM |
| Dimensions & Weight | |
| Width | 10 cm |
| Depth | 9.8 cm |
| Height | 2.8 cm |
| Weight | 260 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -10 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
