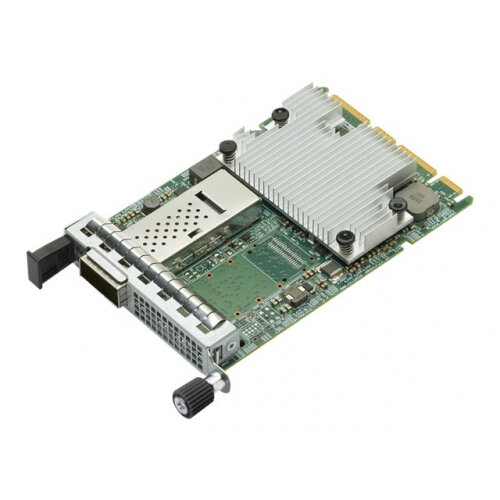

Broadcom BCM957504-N1100G - Network adapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 1
- Single-port pluggable media interface, which is compatible with a QSFP56/QSFP28/QSFP+ optical transceiver or a copper direct-attach cable
- Industry's most secure PCIe adapter solution leveraging Broadcom's BroadSAFE technology
- Supports 50G PAM-4 and 25G NRZ signaling
- Multi-Host up to four hosts
- Fully compliant with the SFF-8402 standard
- X16 PCI Express 4.0 compliant
- SR-IOV with up to 1k virtual functions (VFs)
- Function-Level Reset (FLR) support
- TruFlow flow processing engine
- Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
- VSwitch Acceleration
- Tunnel-aware stateless offloads
- DCB support - PFC, ETS, QCN, DCBx
- RDMA over Converged Ethernet (RoCE)
- Network Controller Sideband Interface (NC-SI)
- SMBus 2.0
- MCTP over SMBus
- Jumbo frames up to 9 KB
- Advanced congestion avoidance
- Multiqueue, NetQueue, and VMQ
- IPv4 and IPv6 offloads
- TCP, UDP, and IP checksum offloads
- Large send offload (LSO)
- Large receive offload (LRO)
- TCP segmentation offload (TSO)
- Receive-side scaling (RSS)
- Transmit-side scaling (TSS)
- VLAN insertion/removal
- Interrupt coalescing
- Network boot - PXE, UEFI
- ISCSI boot
- Wake-on-LAN (WOL)
- MSI and MSI-X
- OCP 3.0 FRU support
|
Product Specification
- Product Code
- H44394824
- Manufacturer Ref
- BCM957504-N1100G
- Barcode
- 0650861000529
Product Details
- Broadcom BCM957504-N1100G - Network adapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 1
The Broadcom BCM957504-N1100G is a single-port 100 Gb/s PCI Express 4.0 x16 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with one QSFP56 network connector. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57504 100GbE MAC controller with an integrated single-channel 100GbE SFI transceiver.
Specifications
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Networking | |
| Ports | 100 Gigabit QSFP56 x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 100 Gigabit Ethernet |
| Status Indicators | Link/activity |
| Features | Wake on LAN (WOL), Data Center Bridging Exchange (DCBX) support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Generic Routing Encapsulation (GRE), Transmit Side Scaling (TSS), iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Function Level Reset (FLR), Message Signaled Interrupts (MSI), 9 KB Jumbo Frame, MCTP over SMBus, TruFlow, Interrupt coalescing, Enhanced transmission selection (ETS), Quantized Congestion Notification (QCN), GENEVE support, Open Compute Project (OCP) 3.0 support, vSwitch Acceleration, tunnel-aware stateless offloads, SMBus 2.0, VMware NetQueue and Microsoft Virtual Machine Queue (VMQ) |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet - QSFP56 |
| Miscellaneous | |
| Compliant Standards | Halogen-free, MSA SFF-8402 |
| Dimensions & Weight | |
| Weight | 90 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | Up to 95% (non-condensing) |
